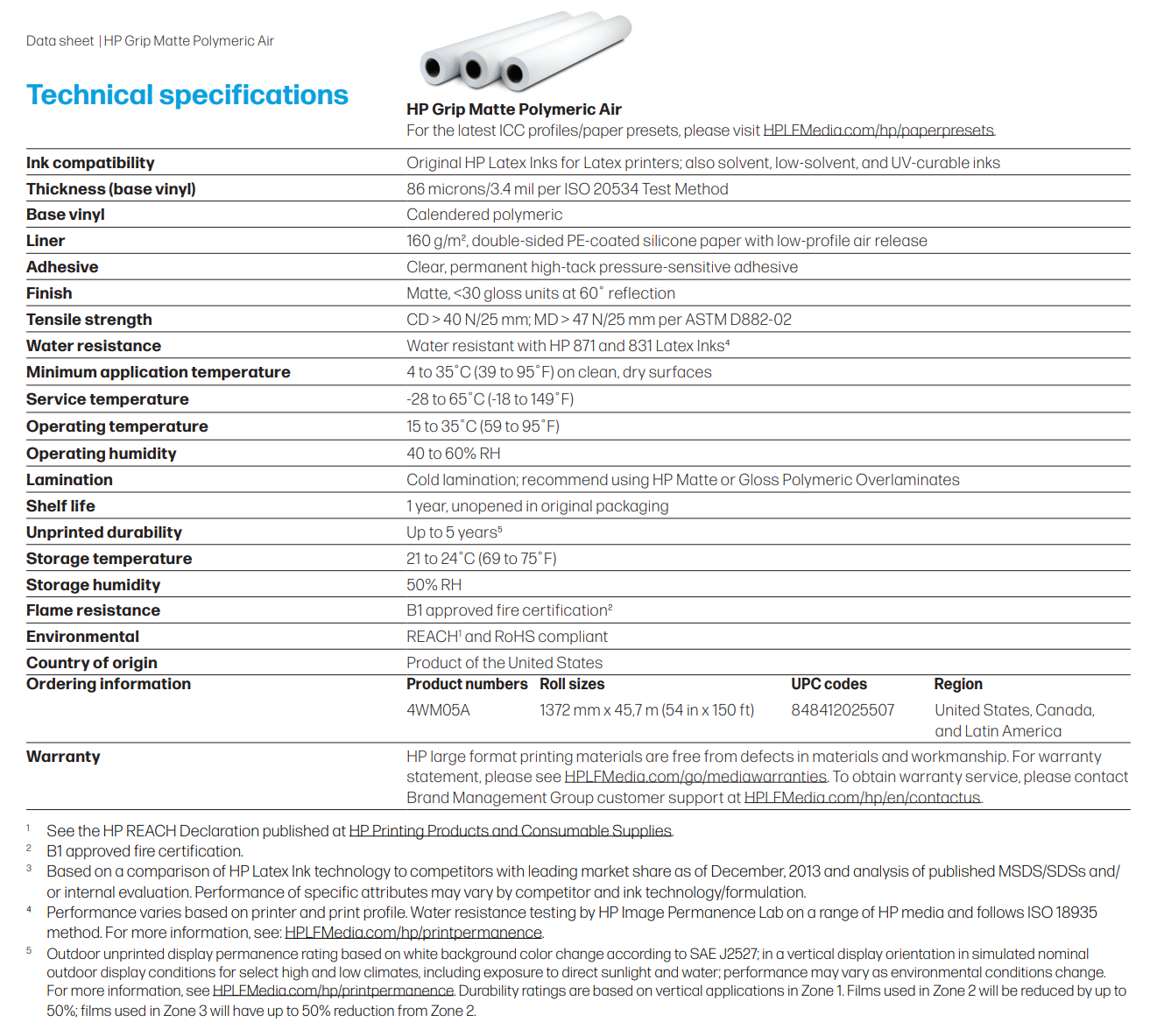

Ink Compatibility | Original HP Latex Inks for Latex printers; also solvent, low-solvent, and UV-curable inks |
Thickness (base vinyl) | 86 microns/3.4 mil per ISO 20534 Test Method |
Base Vinyl | Calendered polymeric |
Liner | 160 g/m², double-sided PE-coated silicone paper with low-profile air release |
Adhesive | Clear, permanent high-tack pressure-sensitive adhesive |
Finish | Matte, <30 gloss units at 60˚ reflection |
Tensile Strength | CD > 40 N/25 mm; MD > 47 N/25 mm per ASTM D882-02 |
Water Resistance | Water resistant with HP 871 and 831 Latex Inks |
Minimum Application Temperature | 4 to 35˚C (39 to 95˚F) on clean, dry surfaces |
Service Temperature | -28 to 65˚C (-18 to 149˚F) |
Operating Temperature | 15 to 35˚C (59 to 95˚F) |
Operating Humidity | 40 to 60% RH |
Lamination | Cold lamination; recommend using HP Matte or Gloss Polymeric Overlaminates |
Shelf Life | 1 year, unopened in original packaging |
Unprinted Durability | Up to 5 years |
Storage Temperature | 21 to 24° C / 69 to 75° F |
Storage Humidity | 50% RH |
Flame Resistance | B1 approved fire certification |
Environmental | REACH and RoHS compliant |
Country of Origin | Product of United States |
Ordering Information | 4WM05A 1372 mm x 45,7 m (54 in x 150 ft) |
1. See the HP REACH Declaration published at HP Printing Products and Consumable Supplies.
2. B1 approved fire certification.
3. Based on a comparison of HP Latex Ink technology to competitors with leading market share as of December, 2013 and analysis of published MSDS/SDSs and/or internal evaluation. Performance of specific attributes may vary by competitor and ink technology/formulation.
4. Performance varies based on printer and print profile. Water resistance testing by HP Image Permanence Lab on a range of HP media and follows ISO 18935 method. For more information, see: HPLFMedia.com/hp/printpermanence.
5. Outdoor unprinted display permanence rating based on white background color change according to SAE J2527; in a vertical display orientation in simulated nominal outdoor display conditions for select high and low climates, including exposure to direct sunlight and water; performance may vary as environmental conditions change. For more information, see HPLFMedia.com/hp/printpermanence. Durability ratings are based on vertical applications in Zone 1. Films used in Zone 2 will be reduced by up to 50%; films used in Zone 3 will have up to 50% reduction from Zone 2.
