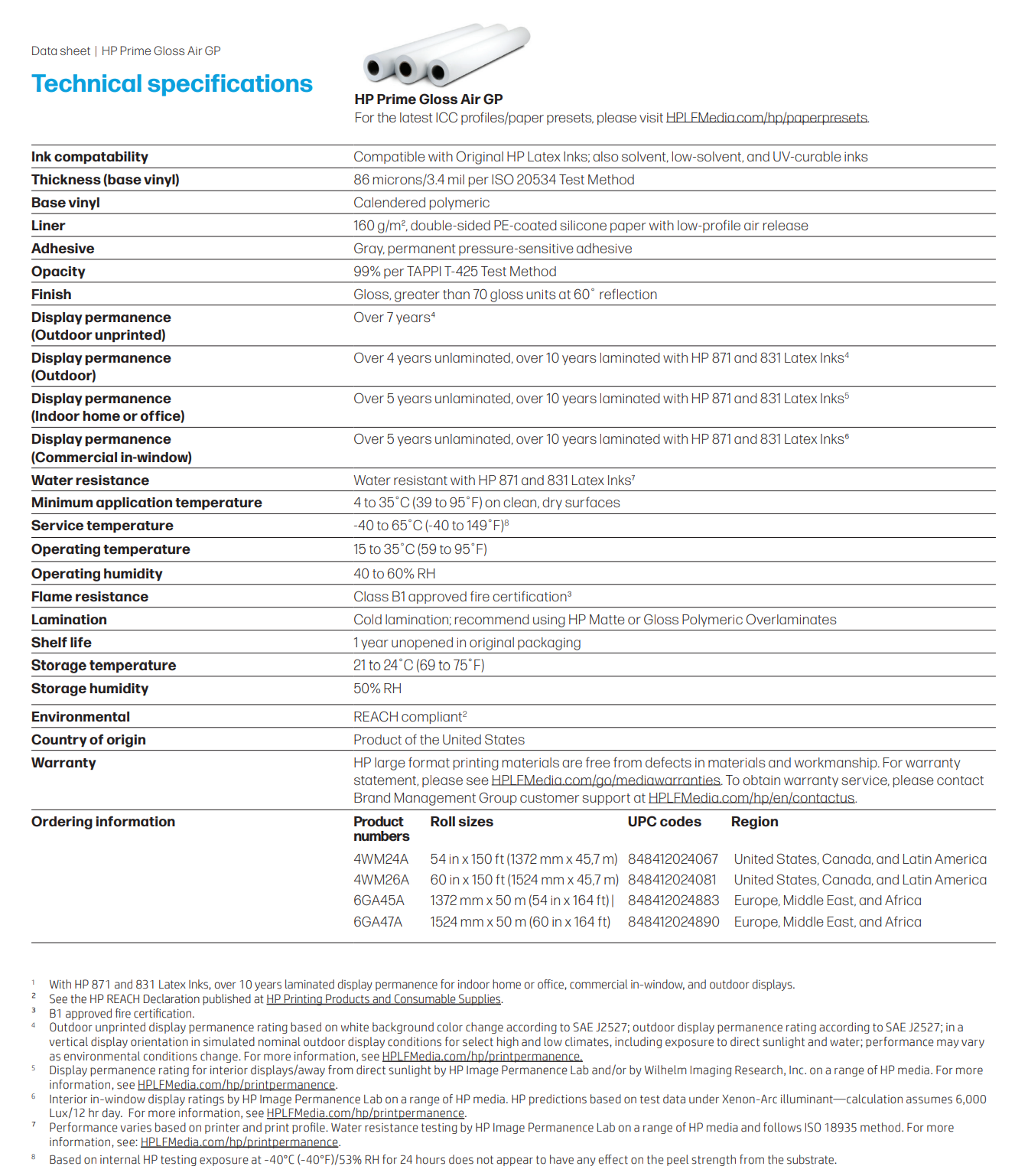

Ink Compatibility | Compatible with Original HP Latex Inks; also solvent, low-solvent, and UV-curable inks. |
Thickness (base vinyl) | 86 microns/3.4 mil per ISO 20534 Test Method |
Base Vinyl | Calendered Polymeric |
Liner | 160 g/m², double-sided PE-coated silicone paper with low-profile air release |
Adhesive | Gray, permanent pressure-sensitive adhesive |
Opacity | 99% per TAPPI T-425 Test Method |
Finish | Gloss, greater than 70 gloss units at 60˚ reflection |
Display Permanence (Outdoor unprinted) | Over 7 years |
Display Permanence (Outdoor) | Over 4 years unlaminated, over 10 years laminated with HP 871 and 831 Latex Inks |
Display Permanence (Indoor home or office) | Over 5 years unlaminated, over 10 years laminated with HP 871 and 831 Latex Inks |
Display Permanence (Commercial in-window) | Over 5 years unlaminated, over 10 years laminated with HP 871 and 831 Latex Inks |
Water Resistance | Water resistant with HP 871 and 831 Latex Inks |
Minimum Application Temperature | 4 to 35˚C (39 to 95˚F) on clean, dry surfaces |
Service Temperature | -40 to 65˚C (-40 to 149˚F) |
Operating Temperature | 15 to 35° C / 59 to 95° F |
Operating Humidity | 40 to 60% RH |
Flame Resistance | Class B1 approved fire certification |
Lamination | Cold lamination; recommend using HP Matte or Gloss Polymeric Overlaminates |
Shelf Life | 1 year, unopened in original packaging |
Storage Temperature | 21 to 24° C / 69 to 75° F |
Storage Humidity | 50% RH |
Environmental | REACH compliant |
Country of Origin | Product of United States |
Ordering Information | 4WM24A 54 in x 150 ft (1372 mm x 45,7 m) 4WM26A 60 in x 150 ft (1524 mm x 45,7 m) 6GA45A 1372 mm x 50 m (54 in x 164 ft) 6GA47A 1524 mm x 50 m (60 in x 164 ft) |
1. With HP 871 and 831 Latex Inks, over 10 years laminated display permanence for indoor home or office, commercial in-window, and outdoor displays.
2. See the HP REACH Declaration published at HP Printing Products and Consumable Supplies.
3. B1 approved fire certification.
4. Outdoor unprinted display permanence rating based on white background color change according to SAE J2527; outdoor display permanence rating according to SAE J2527; in a vertical display orientation in simulated nominal outdoor display conditions for select high and low climates, including exposure to direct sunlight and water; performance may vary as environmental conditions change. For more information, see HPLFMedia.com/hp/printpermanence.
5. Display permanence rating for interior displays/away from direct sunlight by HP Image Permanence Lab and/or by Wilhelm Imaging Research, Inc. on a range of HP media. For more information, see HPLFMedia.com/hp/printpermanence.
6. Interior in-window display ratings by HP Image Permanence Lab on a range of HP media. HP predictions based on test data under Xenon-Arc illuminant—calculation assumes 6,000 Lux/12 hr day. For more information, see HPLFMedia.com/hp/printpermanence.
7. Performance varies based on printer and print profile. Water resistance testing by HP Image Permanence Lab on a range of HP media and follows ISO 18935 method. For more information, see: HPLFMedia.com/hp/printpermanence.
8. Based on internal HP testing exposure at -40°C (-40°F)/53% RH for 24 hours does not appear to have any effect on the peel strength from the substrate.
