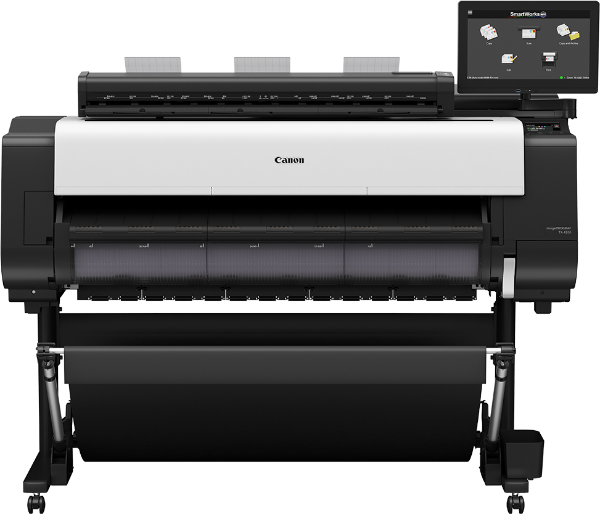

Canon imagePROGRAF TX-4200 MFP Z36 Scanner with Catch Basket 44" Large Format Printer (1-year warranty)

Note: This product requires installation with purchase. An Installation SKU will be automatically added to your cart when purchasing this printer.

With the capability to print both monochrome line drawings and eye-catching full-color posters, the imagePROGRAF TX-4200 MFP Z36 Scanner with Catch Basket 44" Large-Format Printer is designed with production and versatility in mind within the aqueous inkjet market. This 44” large-format printer prints up to 3.3 D-size pages per minute. The 36” Z36 scanner scans up to 13” per second for monochrome prints and 6” per second for color prints, along with basic editing capabilities. Other features include color calibration, LUCIA TD 5-color pigment ink system, intelligent media handling, optional multifunction roll unit, and more!

Key Features:

• 44" Printer with 36" Scanner
• Includes Multi-Positional Catch Basket
• Scan up to 13" per second for monochrome prints
• Up to 3.3 D-size pages per min*
• Max Resolution: 2400 x 1200 dpi
• LUCIA TD 5-Color Pigment Ink System
• USB 2.0, Ethernet & Wi-Fi Connectivity
• Optional Multifunction Roll Unit
• Advanced Security Technology
• EPEAT Gold and Energy STAR registered

Speed

At up to 3.3 D-size prints per minute and with quicker media loading by approximately 34%, this printer is faster than previous models.

Security Features

Security features include PIN printing, self-encrypting hard drive, USB port-disabling capabilities, Ethernet port, and USB direct thumb drive, which will ensure peace of mind for the privacy of your documentation.

Z36 Scanner

Workflow is effortless and consistent with Canon's integration of the scanner with the imagePROGRAF TX Series. Similar to the previous model, the 36" lightweight Z36 scanner is positioned on top of the device, providing a compact, all-in-one solution for ease of use.

• Scan monochrome documents at up to 13" per second and color documents at up to 6" per second
• 15.6" Controller
• Scan up to 1200 dpi

Intelligent Media Handling

Once the media is loaded into the printer, the printer will automatically find the leading edge and feed the media. From there, the TX-4200 will automatically determine the media type, length, and width, which will be shown on the display panel.

Ease of Use

Built with production and efficiency in mind, this printer features a compact design, semi-translucent ink tank and media covers, an intuitive user interface screen, end-user installable printheads, maintenance cartridges, and hot-swap ink tanks. The user interface screen displays the ink and sub-ink tank levels, media indicator levels, and other setting prompts all on the home screen.

Enhanced Productivity with Built-In Storage

A built-in 500GB hard drive can increase productivity by relieving the workload from the host computer while providing a large capacity for print job data storage and retrieval.

Convenient USB Printing

Direct USB thumb-drive printing supports JPEG and PDF file formats. Simply load your files onto your USB drive, step right up to the printer, and plug your USB drive into the port.

Seamless Wireless Connectivity

With Wi-Fi connectivity, you can transfer technical drawing files and speed up workflow. No Wi-Fi router is needed, providing greater freedom during installation.

Precision Print Head Technology

The six-channel PF-06 Print Head is engineered to work with the printer's high-speed carriage and high-frequency ink ejection to help facilitate fast printing. This printer boasts Canon's notable print-head technology, laying down ink with outstanding speed and accuracy. The PF-06 incorporates a nozzle orifice shape to help minimize mist spray, producing clean lines and text. The high-precision, high-density print head, with a total of 15,360 nozzles, lays down 5 picoliter-sized ink droplets that help produce sharp detail and excellent image quality. The result is a consistently accurate 2400 x 1200 dpi output with fine lines that are accurate to ±0.10% and as thin as 0.02mm.

Durable and High-Quality Pigment Ink System

Featuring a 5-color LUCIA TD Pigment ink system, this ink produces fine lines and sharp text, even on non-inkjet-coated paper. This ink helps provide a balance between bleed resistance, black density, and water resistance not found in dye ink. Combine this pigment ink with water-resistant media, and you have a printed drawing that can withstand many outdoor conditions, especially outdoor job sites such as construction sites.

What's In The Box?

TX-4200 Printer:

• Canon imagePROGRAF TX-4200 MFP Z36 44" Large Format Printer w/Catch Basket
• Stand
• (1) PF-06 Printhead
• Limited 1-Year Manfacturer Warranty
• Starter Ink Tank Set (330 ml MBK/BK/C/Y/M)
• (1) MC-30 Maintenance Cartridge (Installed)
• 2” Roll Holder with 3” Adapters
• Installation Guide
• User Registration Card
• Printer Warranty Statement
• Printhead Warranty Statement
• Call Center Notice
• Media Compatibility Flyer
• PosterArtist Web Notice Flyer
• iWR Service Terms Leaflet
• Safety and Environmental Information
• USB port (High Speed)
• Power Cable & Screw
• Gigabit Ethernet (Built-In)

Z36 Scanner:

• Z36 Scanner with Power Cord
• USB 3.0 Cable (2 m)
• 15.6” System Controller
• 3:1 Trident Power Cord
• Power Supply
• Mount for Printer and System Controller
• (2) Paper Edge Guides
• Document Return Guides
• Calibration target
• Assembly and Start Up Guide
• 3:1 Trident Power Cord
