Epson SureColor V4000 UV Flatbed Printer

The Epson SureColor V4000 UV Flatbed Printer is a mid-range UV flatbed designed for print shops that need more capability than desktop systems without stepping up to a full 4' x 8' industrial machine.

With a large A1+ print bed (38.5" x 27.5"), a 10-color UltraChrome UV ink set including white and varnish, and support for objects up to 7.8 inches thick, the V4000 is built for signage, promotional products, and high-value custom applications. If you're researching Epson V4000 specs, print bed size, or UV flatbed capabilities, this page provides a complete overview.

What Is the Epson SureColor V4000 UV Flatbed Printer?

The Epson SureColor V4000 is a production-ready UV flatbed printer designed to bridge the gap between entry-level desktop UV printers and full-size 4' x 8' industrial flatbed systems, offering a true mid-range solution for growing print businesses.

It delivers a balance of size, capability, and efficiency, making it ideal for businesses looking to scale into higher-volume production, expand into new applications, or improve workflow without the footprint of a full-size flatbed.

With its A1+ print bed, multi-layer printing capabilities, and ability to print on both rigid and dimensional objects, the V4000 is built for versatility across signage, promotional products, industrial printing, and specialty applications like Braille and textured output.

Epson SureColor V4000 Overview

• UV flatbed printer for rigid and specialty media
• 10-color UltraChrome UV ink system
• 38.5" x 27.5" print area (A1+)
• Supports Braille, texture, and varnish effects
• Available Summer 2026 (preorder now open)

Epson SureColor V4000 Printer Introduction Video

SureColor V4000 Key Features

The printer supports multi-layer printing of White, Color, and Varnish in a single pass, helping reduce production time while enabling premium textures and decorative finishes. With support for media up to 7.8" thick, automatic laser height detection, and a built-in ionizer to reduce static, the V4000 is designed for consistent production across a wide range of materials.

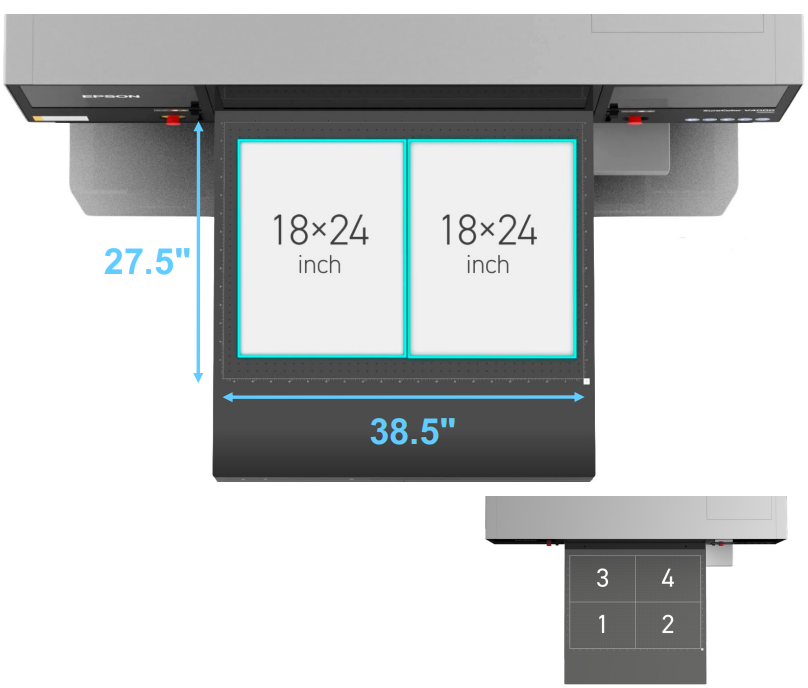

V4000 Print Area

High Productivity

• Large 38.5" x 27.5" print area prints multiple items at once, including two full-bleed 18" x 24" boards in a single run for maximum production efficiency
• Single-pass White/Color/Varnish workflows
• Supports media up to 7.8" thick with automatic height detection

Exceptional Print Quality

• 10-color UltraChrome UV ink set, including White and Varnish for expanded capability and specialty effects
• PrecisionCore Micro TFP printheads for sharp detail and smooth gradients
• Supports Braille and textured print applications
• High precision output for fine lines and small text

User-Friendly Operation

• Front-access controls, ink tanks, and maintenance points
• Touchless laser media height detection for accuracy and safety
• Open flatbed design for easy substrate placement

Installation & Workflow Simplicity

• Compact footprint fits through a standard 6-foot doorway
• Operates on standard 110V power
• Turnkey installation with white-glove delivery, setup, and training
• Designed for fast onboarding and minimal operator complexity

Braille & Specialty Printing

• Supports ADA-compliant Braille printing
• Enables textured and tactile print applications

Reliable & Efficient Design

• Built-in ionizer reduces static for accurate ink placement
• White ink circulation system maintains consistency and reduces waste
• Automatic printhead maintenance minimizes downtime

Epson strongly recommends the use of genuine ink to ensure optimal print quality and performance. Use of non-genuine ink may cause damage not covered by the printer’s limited warranty.

Eco Features

• RoHS compliant
• End-of-life options available
• Epson America, Inc. is a SmartWay® Transport Partner

Applications

• Indoor and outdoor signage
• Promotional products such as keychains, golf balls, and pens
• Industrial printing, including overlays and parts
• Braille and textured printing

What's In The Box

• SureColor V4000 Printer
• Set of Ink: C, M, Y, K, LC, LM, GY, R, WH (x2), Vr (x2) (1,000 mL/ each)*
• Epson Edge Print PRO RIP
• Power Cord
• USB Cable
• Wiper Unit
• Mist Filter
• Waste Ink Bottle
• Cleaning Liquid (1,000 mL)
• Cleaning Sticks
• User Guide Kit

V4000 Printer Size & Dimensions

• Width (Printing): 83 inches
• Width (Stowed): 83 inches
• Depth (Printing): 76 inches
• Depth (Stowed): 66 inches
• Height (Printing): 58 inches
• Height (Stowed): 58 inches
• Weight: 1,334 lb (605 kg)

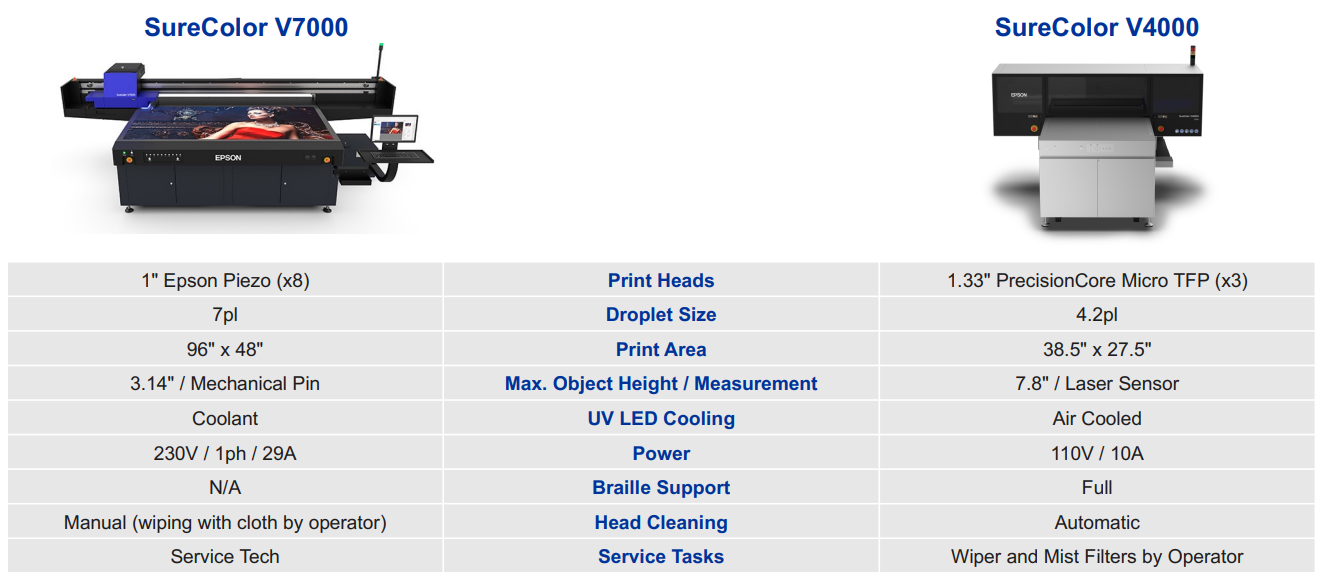

Epson V7000 vs. V4000 Comparison

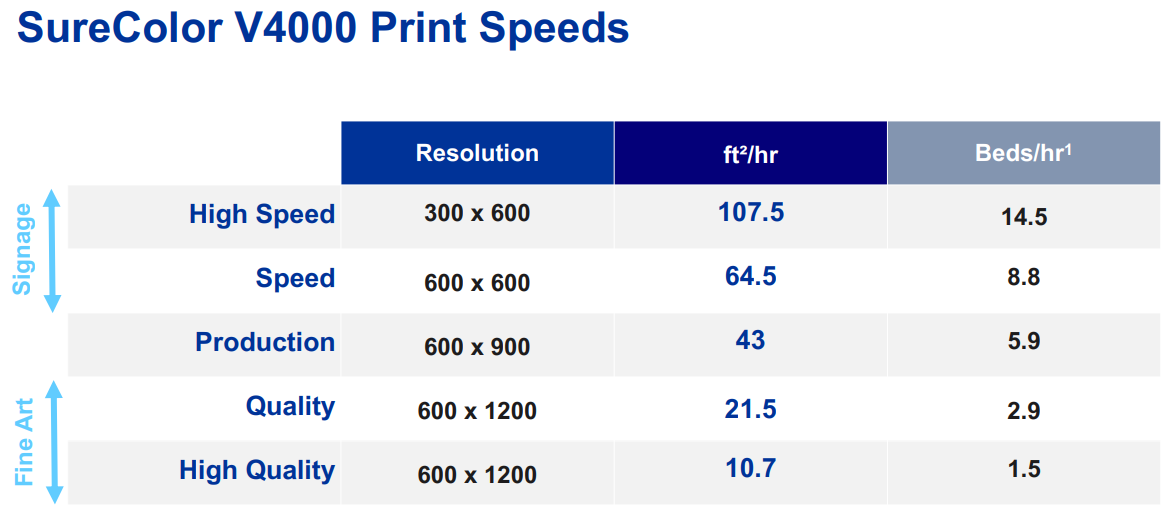

Epson V4000 Print Speeds

¹ Beds per hour shown are based on printer performance only and do not include loading, unloading, and setup time.

Epson SureColor V4000 — Frequently Asked Questions

What is the Epson SureColor V4000 best for?

The V4000 is a mid-range UV flatbed that bridges desktop UV printers and full 4' x 8' industrial machines. With an A1+ bed (38.5" x 27.5") and support for objects up to 7.8 inches thick, it's built for indoor/outdoor signage, promotional products like keychains and golf balls, industrial overlays and parts, and specialty work like ADA-compliant Braille and textured graphics.

When will the V4000 be available, and what's the price?

The V4000 is currently open for preorder, with shipping expected in Fall 2026. Call 1-800-771-9665 for current pricing and availability.

Should I buy the V4000 or the V7000?

Choose the V4000 if you need production UV capability without industrial scale: it fits through a standard 6-foot doorway, runs on standard 110V power, and handles thicker objects (up to 7.8") at a mid-range price. Choose the V7000 if you need a full 4' x 8' bed and maximum throughput — it's the industrial machine, at roughly twice the weight and footprint.

What ink does the V4000 use?

A 10-color UltraChrome UV ink set: Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Gray, Red, White (x2), and Varnish (x2). The box includes a full set at 1,000mL per cartridge. Epson strongly recommends genuine Epson ink — non-genuine ink can cause damage not covered by the warranty.

How thick of an object can it print on?

Up to 7.8 inches thick. Touchless laser height detection automatically measures and adjusts for each object, so there's no manual setup when switching between thin boards and dimensional items.

Can it print white ink and varnish in a single pass?

Yes. The V4000 lays down White, Color, and Varnish layers in a single pass, which cuts production time and enables premium textures, gloss and matte varnish effects, and decorative finishes without multiple runs.

Can the V4000 print Braille?

Yes — it supports ADA-compliant Braille printing and tactile output for accessibility signage and specialty applications. Note that ADA compliance itself is the operator's responsibility.

What are the power and space requirements?

The V4000 measures 83 inches wide x 76 inches deep x 58 inches high and weighs 1,334 lb. It fits through a standard 6-foot doorway and runs on standard single-phase 110V power (AC 100-240V, 10 amps or less) — no special electrical work. White-glove delivery, setup, and training are included.

What's in the box?

The SureColor V4000 printer, a full set of 1,000mL inks, Epson Edge Print PRO RIP software, power and USB cables, wiper unit, mist filter, waste ink bottle, 1,000mL cleaning liquid, cleaning sticks, and the user guide kit.

Does the V4000 have a rotary attachment?

No rotary kit is offered for the V4000. It supports a range of specialty flatbed workflows depending on media and configuration, but cylindrical printing isn't one of them.

Notes:

1 Compliance with the Americans with Disabilities Act is the sole responsibility of the operator.

2 For convenient and reasonable recycling options, visit epson.com/recycle

3 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

*Part of the ink from the first cartridges/packs/bottles is used for initializing the printer. Ink usage will vary considerably based on images printed, print settings, paper type, frequency of use, temperature and humidity. Variance may be more pronounced when printing infrequently or predominantly with one ink color. Ink is used for printing and printer maintenance, and all colors must be available for printing. For print quality, a variable amount of ink remains after the “replace ink” indicator comes on.
