GRAPHTEC FC9000-160 64" Wide Cutter - DEMO UNIT - Please call us to confirm availability - There may be times the demo-equipment listed has recently sold.

Call 1-800-771-9665 to confirm availability. Demo units are limited.

Regularly $7,295 — now $6,795 after $500 IT Supplies Demo Discount. Shipping charges may apply and are not included in this price.

Graphtec's FC9000 Series represents their most advanced and versatile roll-fed cutting plotter to date.

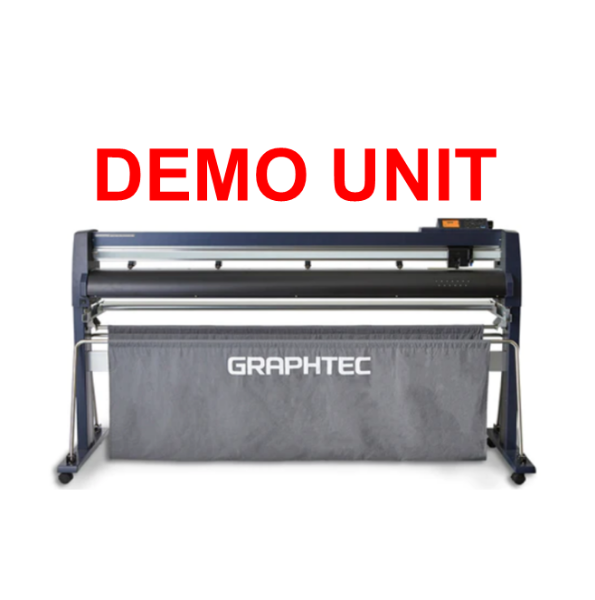

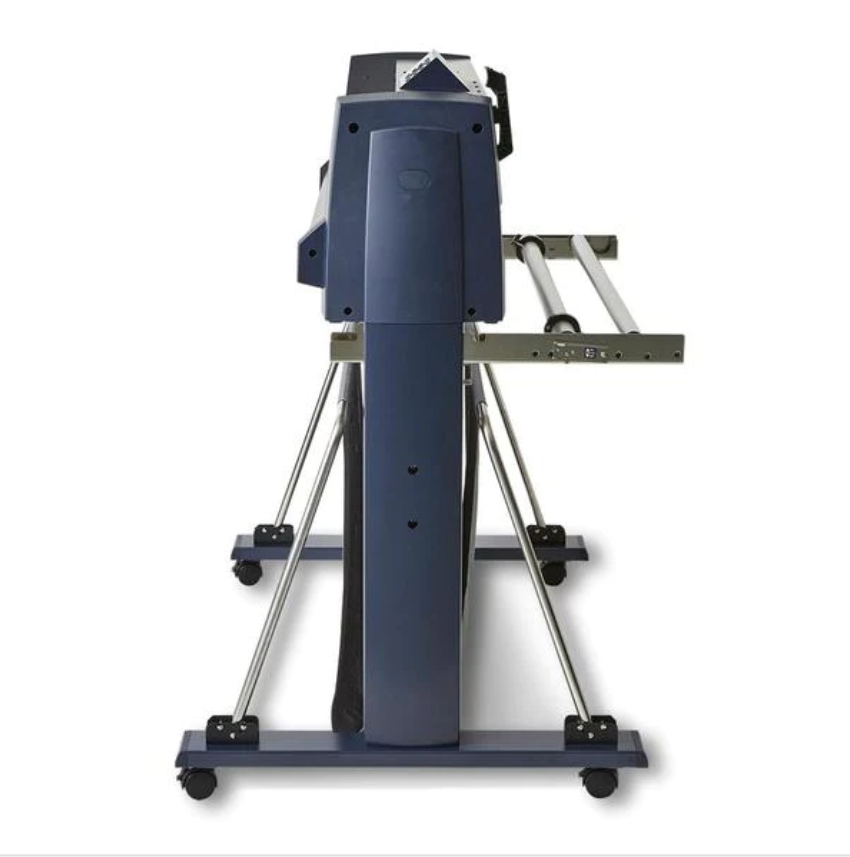

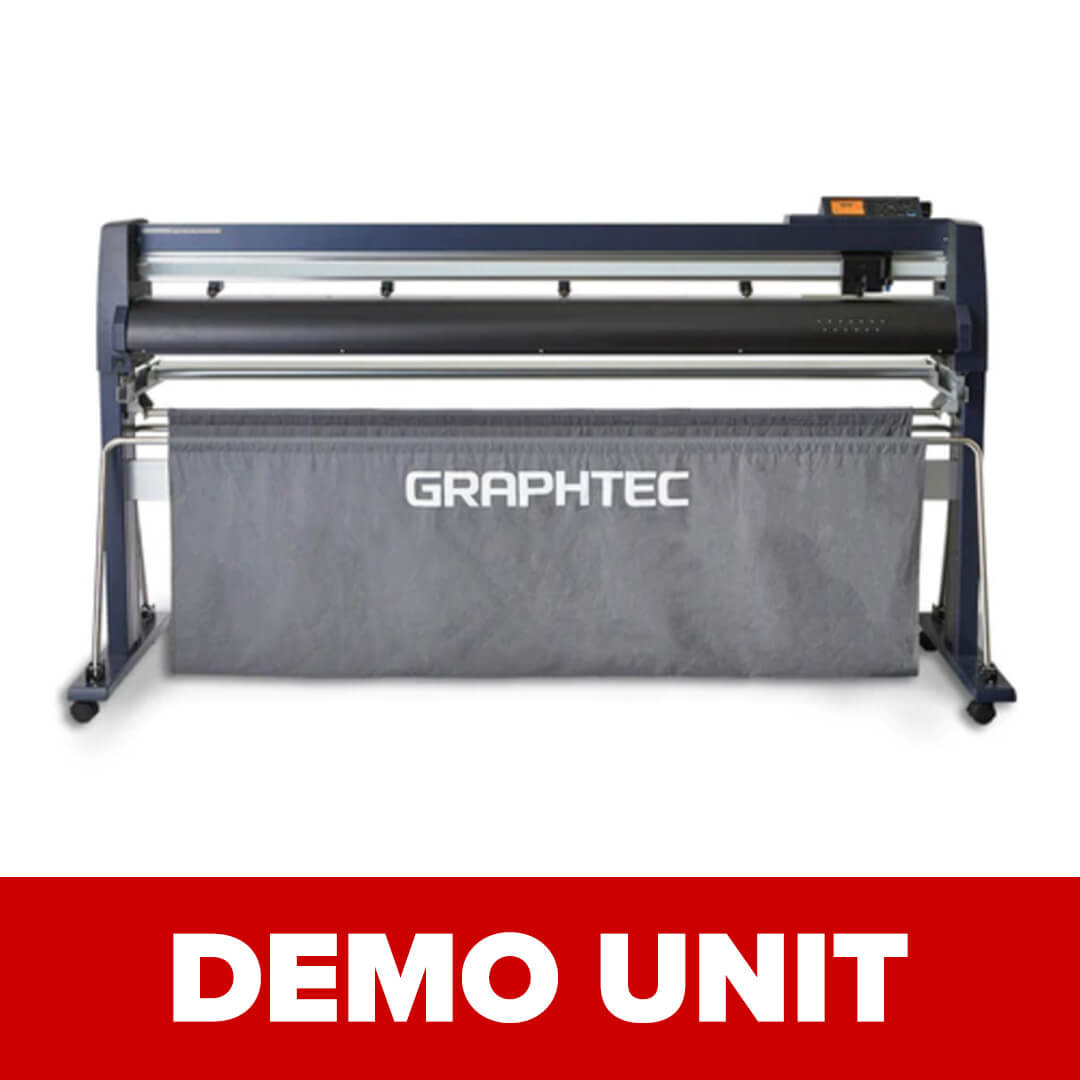

The Graphtec FC9000-160 is a 64" wide roll-fed cutting plotter built for high-precision cutting of both printed and unprinted media. With Graphtec's advanced ARMS 8.0 registration technology, improved media feeding system, and versatile cutting capabilities, the FC9000-160 is ideal for signage, vinyl decals, print and cut, DTF and heat transfer, window tint, paint protection film, automotive graphics, and reflective media.

GRAPHTEC FC9000 Intro Video

High-Precision Cutting for a Wide Range of Media

The FC9000 Series features a newly developed feeding system and cutting head designed to deliver consistent cutting quality across thin and thick materials. The FC9000-160 easily handles delicate media such as window tint as well as demanding materials including high-intensity reflective media.

• 64" cutting width for a wide range of signage, apparel, automotive, and specialty applications
• ARMS 8.0 Advanced Registration Mark Sensing for accurate print-and-cut production
• DataLink Barcode System automates job identification and cutting-data selection
• New feeding system improves handling of both thin and thick media
• White LED sensor accurately reads registration marks on challenging media surfaces
• Separate tool positions for contour and die cutting help extend blade and cutting-strip life
• Compatible with Graphtec Studio 2 and Cutting Master 5
• PC and Mac compatible with Ethernet and USB connectivity

ARMS 8.0 Advanced Registration Mark Sensing

Graphtec's ARMS 8.0 technology provides precise registration mark detection for accurate contour cutting of printed graphics. The improved white LED sensor and search algorithm can read registration marks on a variety of media, including high-gloss, metallic, glitter, and high-intensity reflective materials.

DataLink Barcode System

The FC9000-160's DataLink Barcode System helps streamline production when processing multiple cutting jobs. Barcodes can link printed cutting data to the corresponding file, allowing the cutter to identify the job, load the appropriate cutting data, adjust settings, and begin cutting with minimal operator input.

DataLink works with a combination of RIP software and printers, as well as Graphtec's Cutting Master 5 and Graphtec Studio 2 software, helping reduce manual job handling and the risk of production errors.

Handles Thin and Thick Media

A re-engineered media feeding system expands the FC9000-160's cutting capabilities beyond traditional vinyl. Additional push rollers can be used for increased precision when cutting heavier or more rigid materials, including rubber and high-intensity reflective media. Three pressure settings provide strong media hold-down while helping minimize track marks.

Contour & Die Cutting

Separate tool positions for contour and die cutting make it easy to produce decals, labels, graphics, and other applications that need to be cut and popped out from sheet or roll media. This design also helps extend the life of the blade and cutting strip.

Optional Take-up Reel System

The Optional Take-up Reel boosts production efficiency by automatically winding finished rolls of media using an equipped infrared sensor. The system can automatically wind rolls of media up to 65 feet long, helping streamline longer cutting jobs and reduce manual media handling.

The optional take-up reel system is available for the Graphtec FC9000-140 and FC9000-160 models.

Software Included

The FC9000 is compatible with Graphtec Studio 2 and includes the Cutting Master 5 plug-in for Adobe Illustrator and CorelDRAW Graphic Suite. Graphtec software supports both PC and Mac workflows and can be connected through Ethernet or USB.

Applications

• Wide-format signage
• Vinyl decals and graphics
• Print and cut
• DTF and heat transfer
• Window tint film
• Paint protection film
• High-intensity reflective materials
• Safety shielding
• Sandblast masking
• Automotive graphics

Graphtec FC9000-160 Highlights

64" Wide Cutting: Supports a broad range of roll-fed cutting applications.

Advanced Registration: ARMS 8.0 provides accurate registration mark sensing for printed media.

Versatile Media Handling: Cuts thin and thick media, including reflective and specialty materials.

Automated Job Processing: DataLink Barcode System helps identify and process multiple cutting jobs efficiently.

Optional Take-up Reel: Automatically winds rolls up to 65 feet long using an infrared sensor.

Professional Software: Works with Graphtec Studio 2 and Cutting Master 5 for design and cutting workflows.
