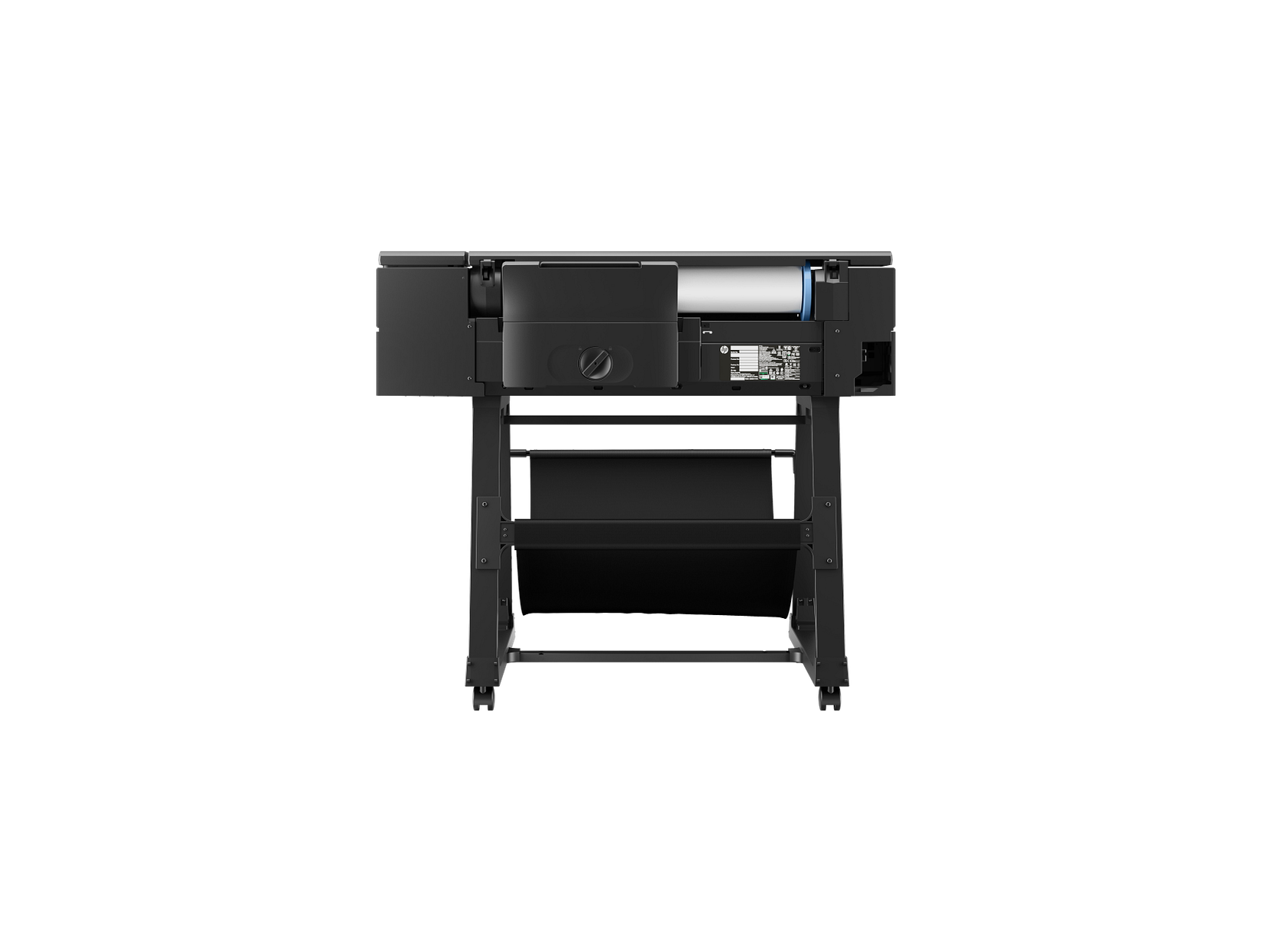

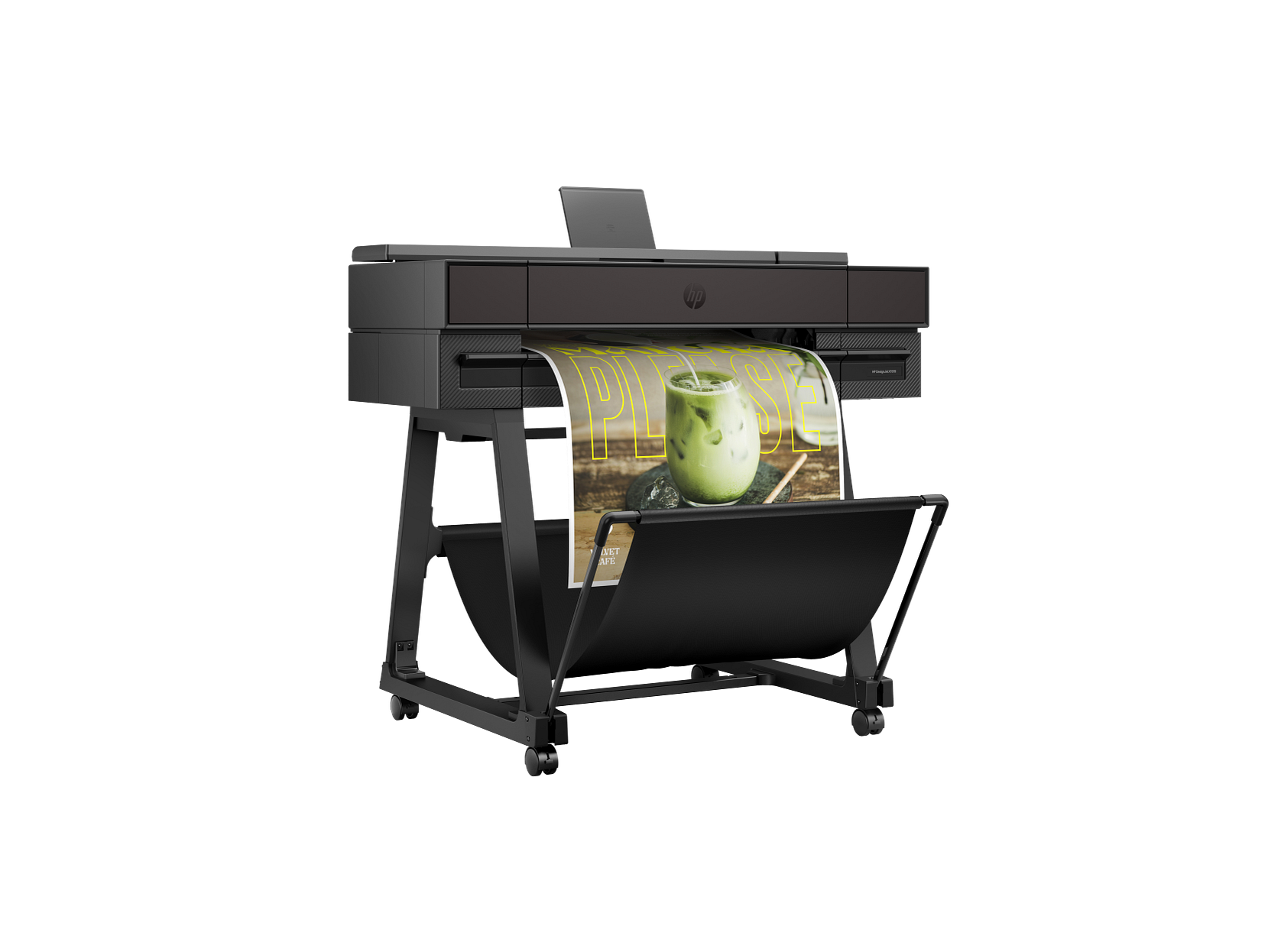

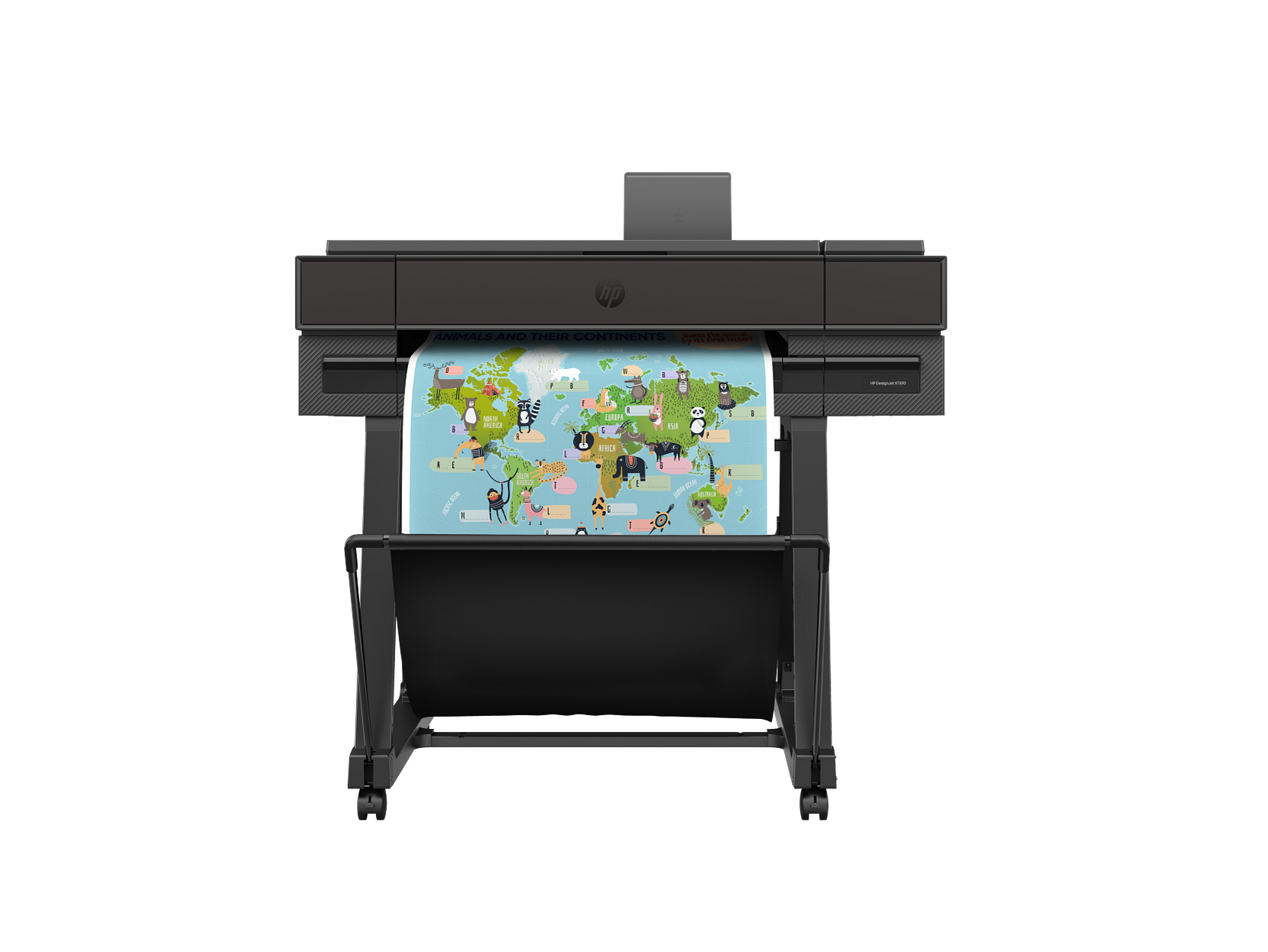

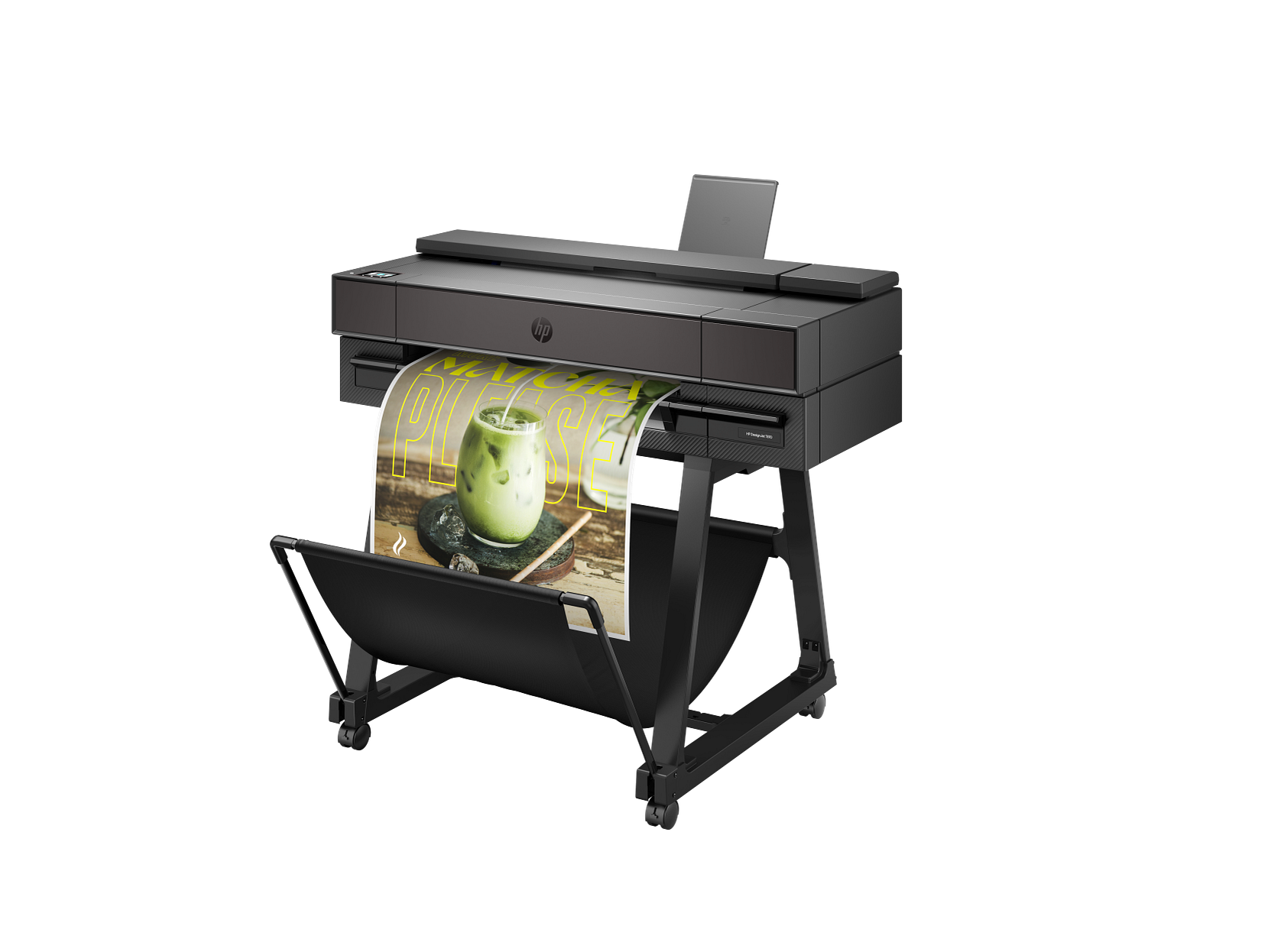

HP DesignJet XT870 24" Single-Function Plotter Printer
Regularly $2,295, now only $2,045 after $250 HP Instant Rebate thru 07/31/2026!
The HP DesignJet XT870 24" Single-Function Plotter Printer delivers the world's easiest multi-size printing experience for posters, CAD drawings, maps, renderings, and technical documents. Designed for architects, engineers, educators, retail professionals, and businesses requiring versatile large format printing, the XT870 combines effortless operation, high-quality output, secure connectivity, and sustainable design in a compact 24-inch footprint.
With HP Flex Tech Inks, the DesignJet XT870 produces durable, high-quality prints across a wide range of applications including CAD drawings, presentations, posters, retail signage, and professional renderings. Its integrated input tray and roll printing capabilities allow users to seamlessly print multiple sizes from A4/A through A1/D without manually switching between media types.
Built for productivity and ease of use, the HP DesignJet XT870 delivers A1/D-size prints in as fast as 21 seconds while supporting fewer ink interruptions with high-capacity 130 ml and 300 ml Original HP Flex Tech Ink cartridges. Combined with HP Click software, HP Wolf Pro Security, and energy-efficient operation, the XT870 provides a complete large format printing solution for modern workflows.
Key Features
- 24-inch single-function large format plotter printer designed for CAD, posters, signage, maps, and presentations.
- Print multi-size A4/A to A1/D projects using the integrated input tray and roll feed.
- Produce A1/D-size plots in as fast as 21 seconds.
- Achieve up to 120 D-size prints per hour for efficient technical workflows.
- HP Flex Tech Pigment Inks deliver high-quality, durable color output.
- Automatic sheet feeder supports up to 50 sheets for convenient multi-size printing.
- HP Click software simplifies printing with real-time preview and automatic error detection.
- Built-in HP Wolf Pro Security helps protect printer data and connected workflows.
- Made with at least 45% recycled plastic and 10% recycled metal.
- Reduce energy consumption with automatic on/off scheduling.
- Use up to 95% less ink during printhead cleaning routines.
- Compact design ideal for offices, studios, classrooms, and professional environments.
The World's Easiest Multi-Size Printing Experience
The HP DesignJet XT870 eliminates the hassle of manually switching between different media sizes. With support for both roll printing and integrated sheet feeding, users can easily handle everything from small documents to large technical drawings without interrupting their workflow.
The automatic sheet feeder supports A4/A and A3/B size projects, while manual sheet feeding supports larger A through D sizes. This flexible media handling makes the XT870 ideal for environments where multiple document formats are required throughout the day.
- Automatic sheet feeder with up to 50-sheet capacity.
- One-click multi-size printing capability.
- Roll and sheet printing without manual media changes.
- Automatic horizontal cutter for efficient production.
- Optional media bin and sheet organizer available.
High-Quality Printing with HP Flex Tech Inks
The HP DesignJet XT870 uses pigment-based HP Flex Tech Inks to deliver sharp lines, vibrant colors, and durable prints across a variety of media. Whether producing detailed CAD drawings, educational posters, retail signage, or professional presentations, the XT870 provides consistent results with excellent image quality.
The four-color ink system includes cyan, magenta, yellow, and matte black cartridges designed to produce crisp text, precise line drawings, and rich graphic output. With 2400 x 1200 optimized dpi resolution and HP Thermal Inkjet technology, the XT870 delivers the accuracy required for technical and creative applications.
Connected, Secure Printing Designed for Modern Workflows
The HP DesignJet XT870 makes large format printing simple with HP Click software and multiple connectivity options. Users can preview projects before printing, identify potential errors, and send files quickly from Windows, macOS, mobile devices, and USB drives.
HP Click provides an intuitive printing experience with automatic layout optimization, real-print preview, and error detection to help reduce wasted media and improve productivity. With built-in Wi-Fi, Ethernet, Wi-Fi Direct, and mobile printing support, the XT870 fits easily into today's connected workplaces.
Ideal For
- Architecture firms
- Engineering offices
- Construction professionals
- CAD and technical drawing departments
- Educational institutions
- Retail signage applications
- Marketing departments
- GIS and mapping professionals
- Presentation graphics
- Poster printing
- Professional renderings
- General large format document printing
Secure Large Format Printing with HP Wolf Pro Security
The HP DesignJet XT870 24" Single-Function Plotter Printer is designed with built-in security features to help protect your printer, data, and connected workflows from cybersecurity threats. HP Wolf Pro Security provides enterprise-level protection without adding complexity to daily printing operations.
With advanced security features including HP Secure Boot, Allowlisting, security event logging, and secure network protocols, the XT870 helps organizations maintain a safer printing environment while protecting sensitive technical documents and business information.
- HP Secure Boot: Helps verify firmware integrity during startup to protect against unauthorized changes.
- Allowlisting: Ensures only approved firmware and software can run on the device.
- Security event logging: Helps monitor device activity and identify potential security issues.
- Secure network protection: Supports TLS 1.3, SNMPv3, 802.1x compatibility, and network port controls.
- Fleet management support: Compatible with HP Web JetAdmin, HP Security Manager, and SIEM integration.
Designed with Sustainability in Mind
The HP DesignJet XT870 combines professional large format printing performance with responsible design features that help reduce environmental impact. Built with at least 45% recycled plastic and 10% recycled metal, the XT870 supports more sustainable printing practices without sacrificing reliability.
Energy-saving features such as automatic on/off scheduling help reduce power consumption, while optimized printhead cleaning routines use up to 95% less ink compared to previous generations. The printer also uses 100% polystyrene-free packaging and supports responsible cartridge recycling through HP Planet Partners.
- Made with at least 45% recycled plastic.
- Made with at least 10% recycled metal.
- Reduce energy use with automatic on/off scheduling.
- Use up to 95% less ink during printhead cleaning routines.
- 100% polystyrene-free packaging.
- Recycle HP cartridges through HP Planet Partners.
- ENERGY STAR®, EPEAT, and UL ECOLOGO® certified inks.
Fast, Efficient Large Format Printing
The HP DesignJet XT870 is built to help professionals complete projects quickly with minimal interruptions. Users can produce A1/D-size plots in as fast as 21 seconds and achieve up to 120 D-size prints per hour, making it an efficient solution for busy technical environments.
High-capacity Original HP Flex Tech Ink cartridges help reduce the frequency of cartridge replacements, allowing users to spend more time printing and less time managing supplies. Available 130 ml and 300 ml cartridge options provide flexibility for different printing volumes and production needs.
- Print A1/D-size plots in as fast as 21 seconds.
- Produce up to 120 D-size prints per hour.
- 130 ml and 300 ml cartridge options reduce interruptions.
- Automatic cutter improves productivity.
- Compact footprint designed for professional offices.
Precision Output for Technical Documents and Graphics
The HP DesignJet XT870 delivers professional-quality results with HP Thermal Inkjet technology, four-color pigment-based inks, and advanced printhead technology. With up to 2400 x 1200 optimized dpi resolution and line accuracy up to ±0.1%, users can confidently produce detailed drawings, maps, posters, and presentations.
The printer's high-density printhead features 5,504 total nozzles, producing sharp lines, smooth curves, and consistent color output across a wide variety of applications. From technical plans to customer-facing graphics, the XT870 provides dependable results every time.
Why Choose the HP DesignJet XT870?
- Versatile: Easily print multiple sizes and formats from A4/A to A1/D.
- Efficient: Fast production speeds and high-capacity ink cartridges keep workflows moving.
- Connected: HP Click software and mobile printing make production simple.
- Secure: Built-in HP Wolf Pro Security helps protect printer data.
- Sustainable: Designed with recycled materials and energy-saving features.
- Reliable: Built for professional CAD, poster, signage, and technical printing applications.
HP DesignJet XT870 Technical Specifications
| Printer Model | HP DesignJet XT870 24" Single-Function Plotter Printer |
| Product Type | 24-inch large format plotter printer |
| Technology | HP Thermal Inkjet |
| Applications | Banners, line drawings, maps, posters, presentations, renderings, signage |
| Maximum Media Width | 24 inches |
| Print Resolution | Up to 2400 x 1200 optimized dpi |
| Print Speed | 21 seconds per page for D size, up to 120 D-size prints per hour |
| Line Accuracy | ±0.1% |
| Minimum Line Width | 0.0008 inches via raster driver |
| Maximum Optical Density | 15 L* minimum / 1.7 D |
Ink System Specifications
| Ink Type | Pigment-based HP Flex Tech Inks |
| Ink Colors | Cyan, magenta, yellow, matte black |
| Number of Cartridges | 4 cartridges (C, M, Y, mK) |
| Ink Cartridge Sizes | 130 ml and 300 ml cartridges |
| Ink Drop | 6 pl (C, M, Y), 12.6 pl (matte black) |
| Printheads | 1 printhead (C, M, Y, mK) |
| Printhead Nozzles | 1,376 nozzles per color, 5,504 total nozzles |
Media Handling Specifications
| Media Handling | Roll feed, automatic sheet feeder, media bin, automatic horizontal cutter, optional sheet organizer |
| Media Rolls | 1 roll |
| Maximum Roll Width | 24 inches |
| Maximum Roll Diameter | 5.1 inches, rolls up to 300 feet |
| Maximum Roll Weight | 13.2 lb |
| Automatic Sheet Feeder Capacity | Up to 50 sheets |
| Supported Sheet Sizes | Auto feeder: A, B. Manual feed: A, B, C, D |
| Media Thickness | Up to 0.0118 inches |
Supported Media Types
The HP DesignJet XT870 supports a wide range of media types for technical, commercial, and creative applications.
- Bond and coated paper
- Plain paper
- Bright white paper
- Heavyweight coated paper
- Blueprint paper
- Natural tracing paper
- Clear film
- Matte film
- Backlit film
- Photo paper
- Self-adhesive media
- Polypropylene gloss and matte media
- Removable fabric
- PVC banner
- Canvas and fine art materials
Connectivity & Software
| Interfaces | Gigabit Ethernet, Wi-Fi 802.11b/g/n |
| Printing Paths | HP Click App, HP Click Driver, HP App, Apple AirPrint, Wi-Fi Direct, USB printing, Windows and macOS drivers, Chrome OS support |
| Remote Printing | Yes |
| Native Print Languages | TIFF, JPEG, URF, PDF, HP-GL/2, HP-RTL, CALS G4 |
HP DesignJet XT870 Security Features
The HP DesignJet XT870 24" Single-Function Plotter Printer includes advanced security features designed to help protect printer access, sensitive documents, and connected workflows. HP Wolf Pro Security provides built-in protection to help defend against cybersecurity threats while maintaining a simple printing experience.
| Security Features | HP Wolf Pro Security, HP Secure Boot, Allowlisting, Security event logging, Disable network ports and protocols, SNMPv3, 802.1x compatibility, TLS 1.3, HP Web JetAdmin, HP Security Manager, SIEM Integration |
| Firmware Protection | HP Secure Boot and Allowlisting help validate device integrity and prevent unauthorized firmware changes. |
| Network Security | Supports secure network protocols including TLS 1.3, SNMPv3, and 802.1x authentication. |
| Fleet Management | Compatible with HP Web JetAdmin, HP Security Manager, and SIEM integration. |
What's Included
The HP DesignJet XT870 includes everything needed to begin producing professional-quality large format prints right out of the box.
- HP DesignJet XT870 Printer
- Printhead
- Introductory ink cartridges
- Printer stand
- Spindle
- Guide
- Warranty flyer
- Power cord
HP DesignJet XT870 Printer Size & Dimensions
| Product Dimensions (W x D x H) | 43.3 x 27.1 x 36.8 inches |
| Shipping Dimensions (W x D x H) | 51.7 x 22.44 x 25.19 inches |
| Product Weight | 85 lb |
| Shipping Weight | 104 lb |
Warranty & Additional Information
The HP DesignJet XT870 includes a one-year limited hardware warranty for dependable support and peace of mind.
Designed and manufactured for professional environments, the XT870 combines flexible multi-size printing, secure connectivity, sustainable design features, and reliable HP technology in a compact 24-inch footprint.
With support for CAD drawings, maps, posters, signage, presentations, and renderings, the HP DesignJet XT870 provides a versatile large format printing solution for businesses, educational institutions, design teams, and technical professionals.
Simplify Your Large Format Printing Workflow
The HP DesignJet XT870 24" Single-Function Plotter Printer makes professional large format printing easier than ever with automatic multi-size printing, HP Flex Tech Pigment Inks, HP Click workflow tools, and built-in HP Wolf Pro Security.
Whether producing technical drawings, educational posters, retail signage, or professional presentations, the XT870 delivers the speed, accuracy, and flexibility needed for today's demanding print environments.
