Note: This Product is 120V/60Hz. It's also available in 240V.

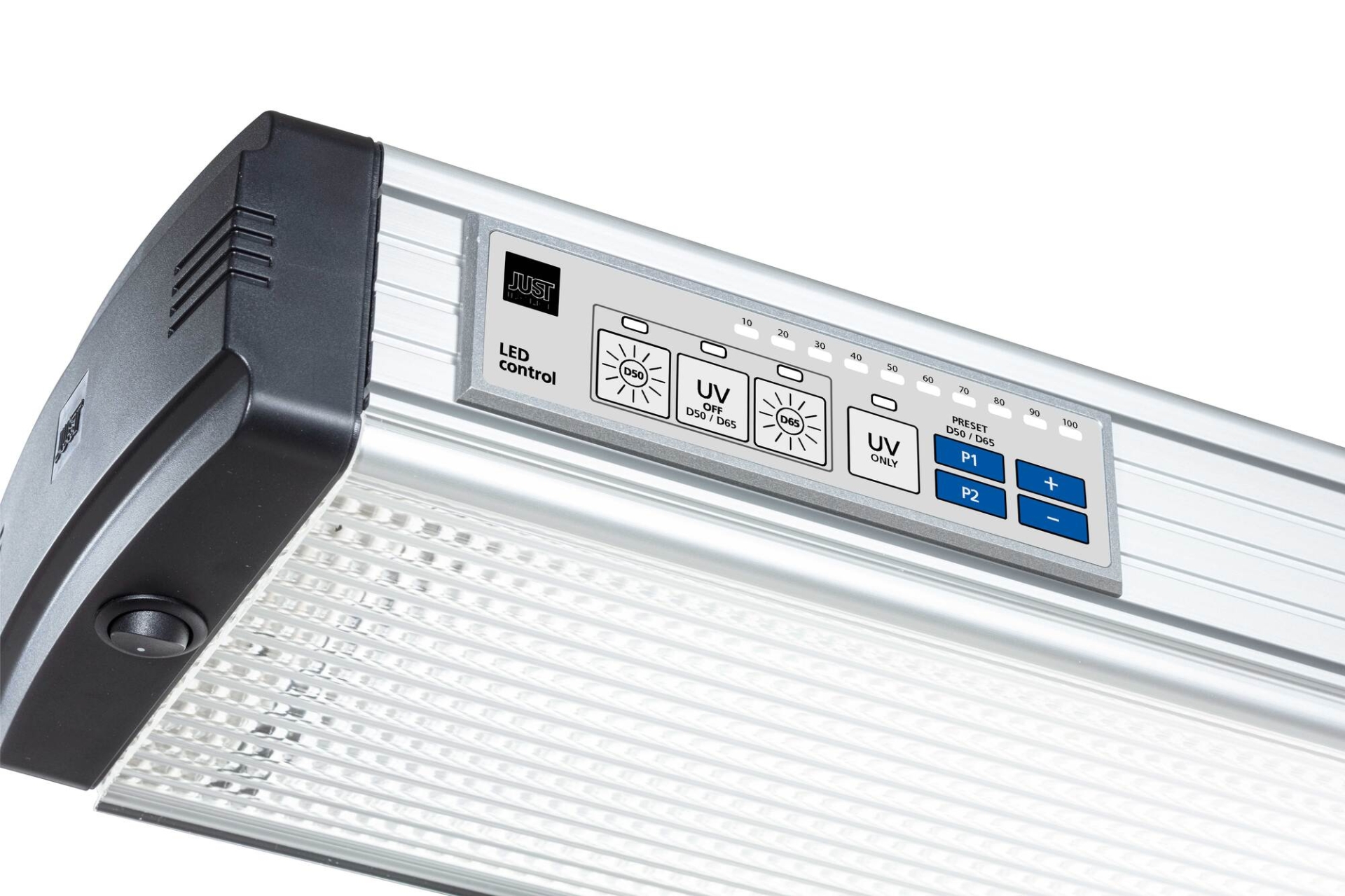

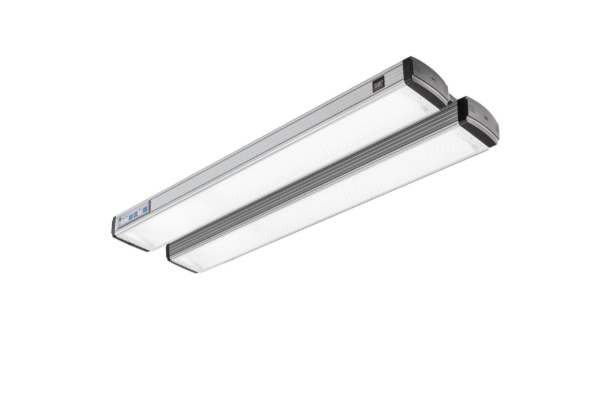

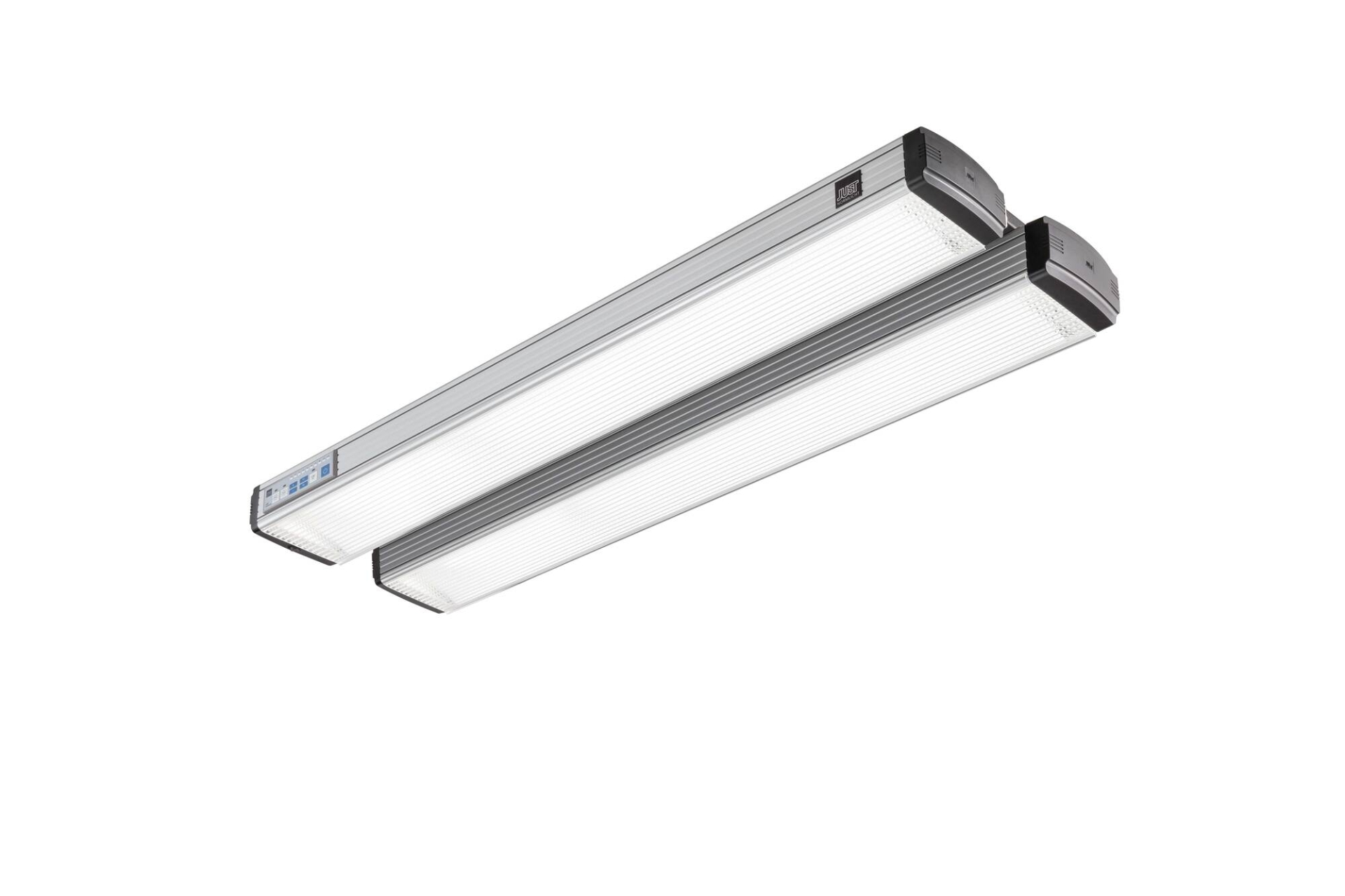

The JUST Normlicht DLS moduLight 2-1200 LED Color Matching Luminaire delivers professional LED illumination for large-format color evaluation where exceptional viewing accuracy is essential. Featuring two high-performance LED modules and JUST's patented multi-colored LED technology, the moduLight 2-1200 provides standardized D50, D65, and UV-A viewing conditions that exceed the requirements of ISO 3664:2009 and ISO 3668.
Designed for demanding print, packaging, industrial, and textile applications, the moduLight 2-1200 produces an expansive, highly uniform illumination area with minimal reflections. Its specialized Fresnel-type prismatic lens ensures glare-free viewing while maintaining excellent light homogeneity across large flat samples.
Unlike conventional fluorescent viewing systems, the DLS moduLight 2-1200 requires no operating hours meter, annual relamping, or costly replacement lamps. The advanced LED light engine provides stable spectral performance throughout its service life, allowing professionals to match colors confidently for years.
Key Features
- Professional dual-module LED color matching luminaire for medium and large-format viewing
- Fogra certified to ISO 3664:2009
- Patented JUST LED illumination technology (US Patent No. 8,592,748 B2)
- Switchable D50 and D65 illuminants according to ISO 3664 and ISO 3668
- UV-A illumination for detecting optical brighteners and fluorescent materials
- UV content can be enabled or disabled for current and previous ISO standards
- Continuously dimmable without color shifts
- USB interface for PC connectivity

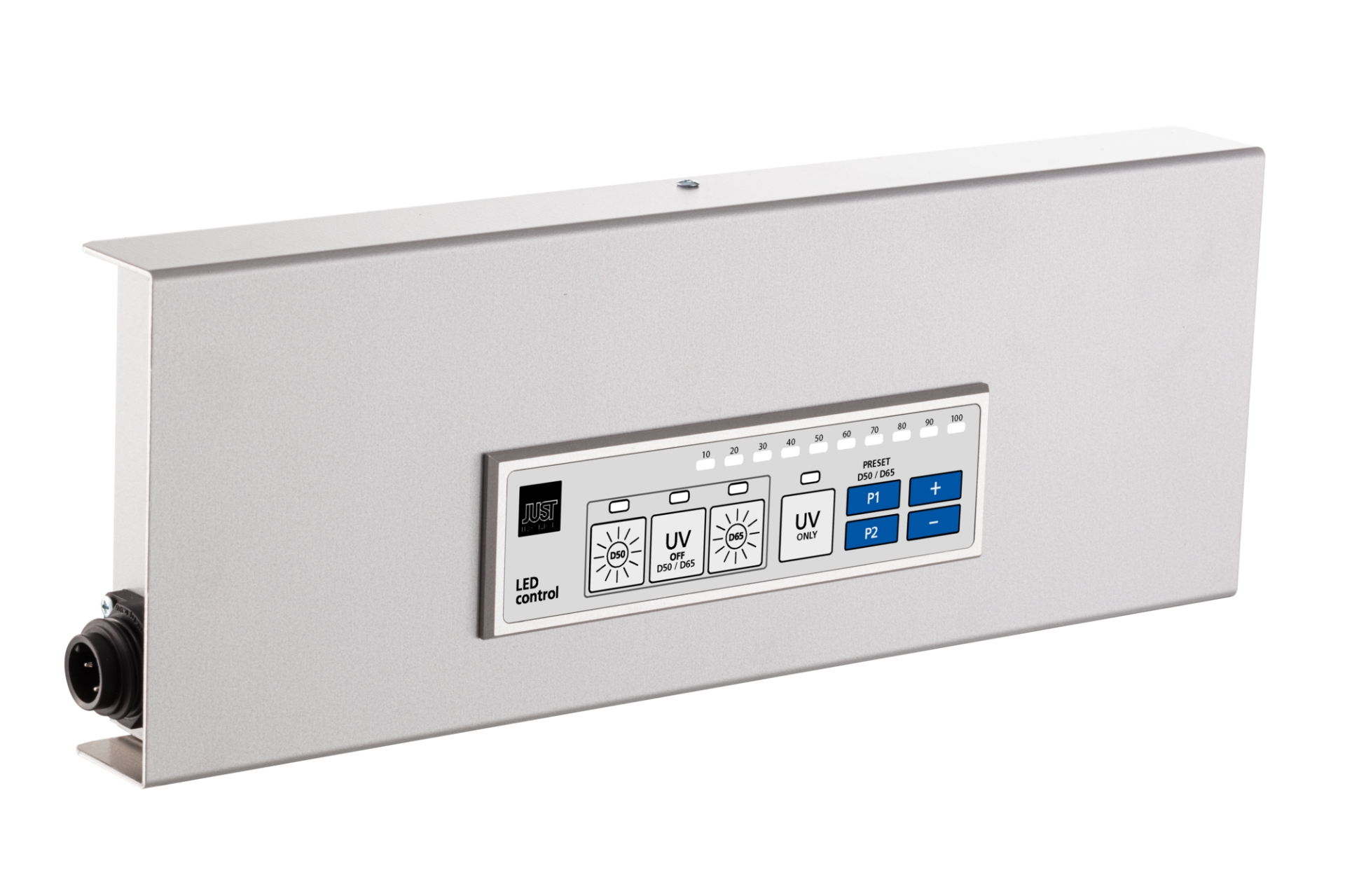

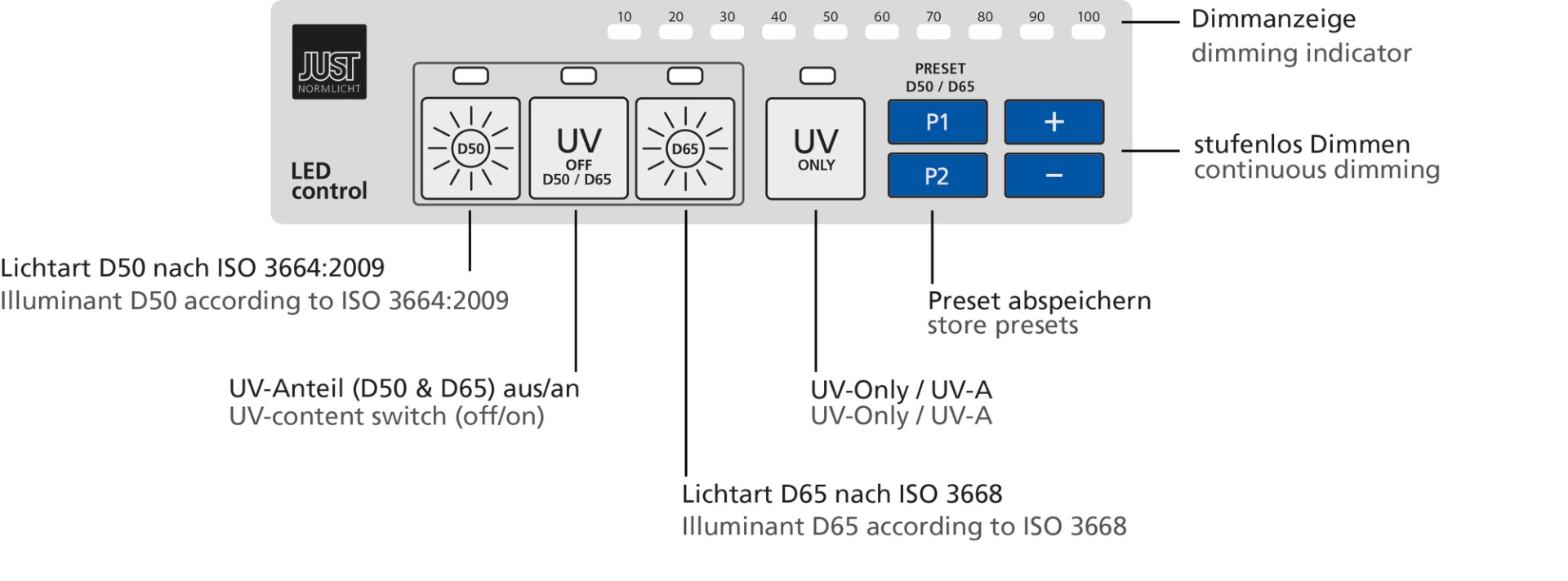

- LED-CONTROL allows intuitive operation and simultaneous control of multiple luminaires
- No warm-up time after power on
- LED lifetime exceeding 50,000 hours depending on illuminant
- No annual lamp replacement required
- Stable illumination throughout the LED lifespan
- Fresnel-type prismatic lens provides homogeneous, glare-free illumination
- 2000 lux illuminance according to ISO standards
- Color Rendering Index (CRI) Ra ≥95
- Includes ceiling suspension wire
Advanced LED Color Matching Technology
The DLS moduLight 2-1200 combines multiple colored LEDs to produce a more complete and balanced light spectrum than conventional fluorescent systems. This advanced LED technology delivers outstanding spectral stability, low metamerism, and highly repeatable viewing conditions throughout the life of the luminaire.
Its specially engineered Fresnel-type prismatic lens minimizes reflections while producing highly uniform illumination across large viewing surfaces, making it ideal for professional color-critical workflows.
Flexible Illuminant Control
The moduLight 2-1200 provides standardized D50, D65, and UV-A viewing modes for comprehensive color evaluation. UV-ONLY mode assists with detecting fluorescent whitening agents and optical brighteners that can affect the appearance of printed and manufactured products.
Continuous dimming, USB connectivity, and compatibility with the optional JUST LED Remote Control allow multiple luminaires to be managed simultaneously for consistent lighting across larger evaluation areas.
Applications
- Large-format color evaluation
- Commercial printing and prepress
- Packaging and label inspection
- Textile and fabric evaluation
- Industrial coatings and surface inspection
- Photography and fine art reproduction
- Detection of metamerism and optical brighteners
- Color-critical manufacturing and product development
Technical Data
| Category | Specification |
|---|
| Model | DLS moduLight 2-1200 LED Color Matching Luminaire |
| Illuminants | CIE D50 (5000K), CIE D65 (6500K), UV-ONLY (UV-A) |
| Illumination Area | 100 x 70 cm (39.375 x 27.5 inches) |
| External Dimensions | 133.5 x 11.5 x 39 cm (52.5 x 4.5 x 15.375 inches) |
| Product Weight | 18 kg (39.7 lbs) |
| Shipping Weight | 39 kg (85.9 lbs) |
| Illuminance | 2000 lux |
| Color Rendering | CRI (Ra) ≥95 |
| Metamerism Index | Visible range ≤0.8 (MIvis), UV range ≤0.6 (MIuv) |
| Chromaticity Coordinates | D50: x=0.3478 / y=0.3595, D65: x=0.3138 / y=0.3309 |
| LED Lifetime | Approximately 50,000 hours (D50), 30,000 hours (D65) |
| Maximum Power | 180 W |
| Typical Electrical Power | D50 (100%) 105.6 W, D65 (100%) 122.4 W |
| Operating Voltage | 120V, 60Hz |
| UV-ONLY Wavelength | 365 nm |
| UV-ONLY Radiant Power | 12 W |
| Housing | Anodized aluminum |
| Lens System | Special prismatic lens, UV-transmissive |
| Protection Class | IP52 |
Why Choose the JUST Normlicht DLS moduLight 2-1200 LED?
The JUST Normlicht DLS moduLight 2-1200 is designed for professionals who require the largest possible standardized viewing area without compromising color accuracy. Its dual-module LED design provides outstanding illumination uniformity across large samples while eliminating the maintenance, warm-up time, and recurring lamp replacement costs associated with fluorescent systems.
With switchable D50, D65, and UV-A illumination, low metamerism performance, and Fogra-certified LED technology, the moduLight 2-1200 enables reliable evaluation of print, packaging, textiles, coatings, and other color-critical materials. USB connectivity, continuous dimming, and compatibility with the optional LED Remote Control make it an ideal solution for modern professional color management workflows.
Whether installed as a standalone luminaire or as part of a larger multi-luminaire system, the DLS moduLight 2-1200 delivers the accuracy, consistency, and long-term reliability demanded by today's color-critical production environments.
