JUST Normlicht DLS moduLight 2-1700 LED Color Matching Luminaire (D65/D50/UV-A) 68.5" x 4.5" x 20.25"
Professional Two-Module LED Color Matching Luminaire for Large Format Color Evaluation
Note: This Product is 120V/60Hz. It's also available in 240V.
The JUST Normlicht DLS moduLight 2-1700 LED Color Matching Luminaire delivers professional LED illumination for large-format color evaluation environments requiring consistent, standardized viewing conditions. Featuring two integrated LED modules and JUST’s patented multi-colored LED technology, the moduLight 2-1700 provides accurate D50, D65, and UV-A illumination for evaluating printed materials, textiles, coatings, packaging, and other color-critical samples.
With an expanded 160 x 80 cm illumination area, the DLS moduLight 2-1700 is designed for larger flat samples and demanding production environments where accurate color decisions are essential. The advanced LED system combines multiple colored LED sources to create a more complete and harmonious light spectrum than conventional fluorescent lighting solutions.
Unlike traditional fluorescent viewing systems, the DLS moduLight 2-1700 requires no operating hours meter, no expensive replacement lamps, and no warm-up period. The LED-based illumination system provides stable, high-quality lighting throughout its lifespan, allowing professionals to match colors with confidence for years.
Key Features

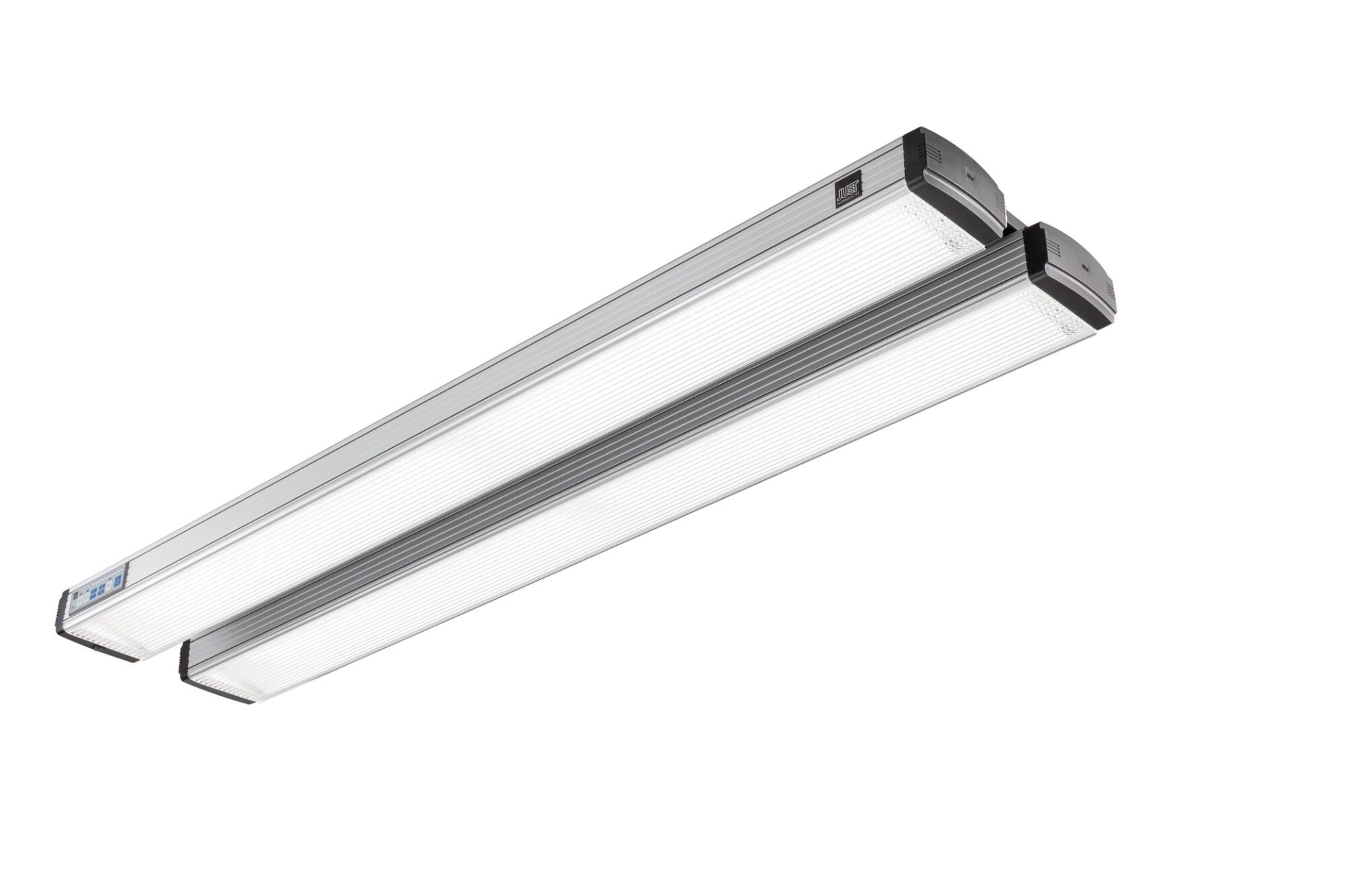

- LED-based color matching luminaire with two illumination modules
- Designed for medium and large-format color evaluation applications
- Fogra certified JUST LED technology according to ISO 3664:2009
- Patented JUST LED light technology (US Patent No. 8,592,748 B2)
- Switchable D50 and D65 illuminants according to ISO 3664 and ISO 3668
- UV-A illumination for detecting optical brighteners and fluorescent materials
- UV content can be enabled or disabled for evaluation according to current and previous ISO standards
- Continuously dimmable illuminants with no color shifts
- USB interface for connection to PC systems
- Different illuminant sequences can be programmed

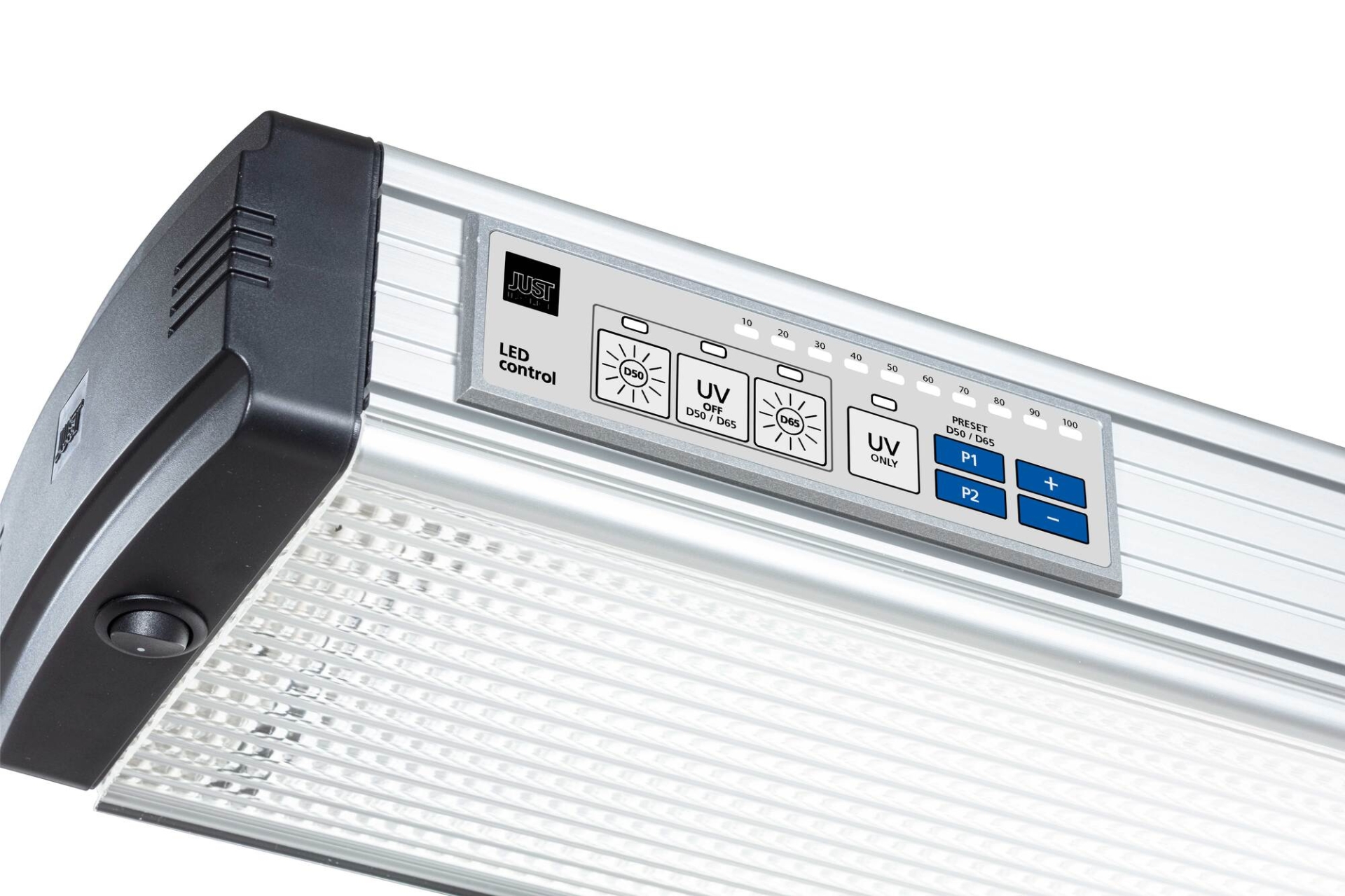

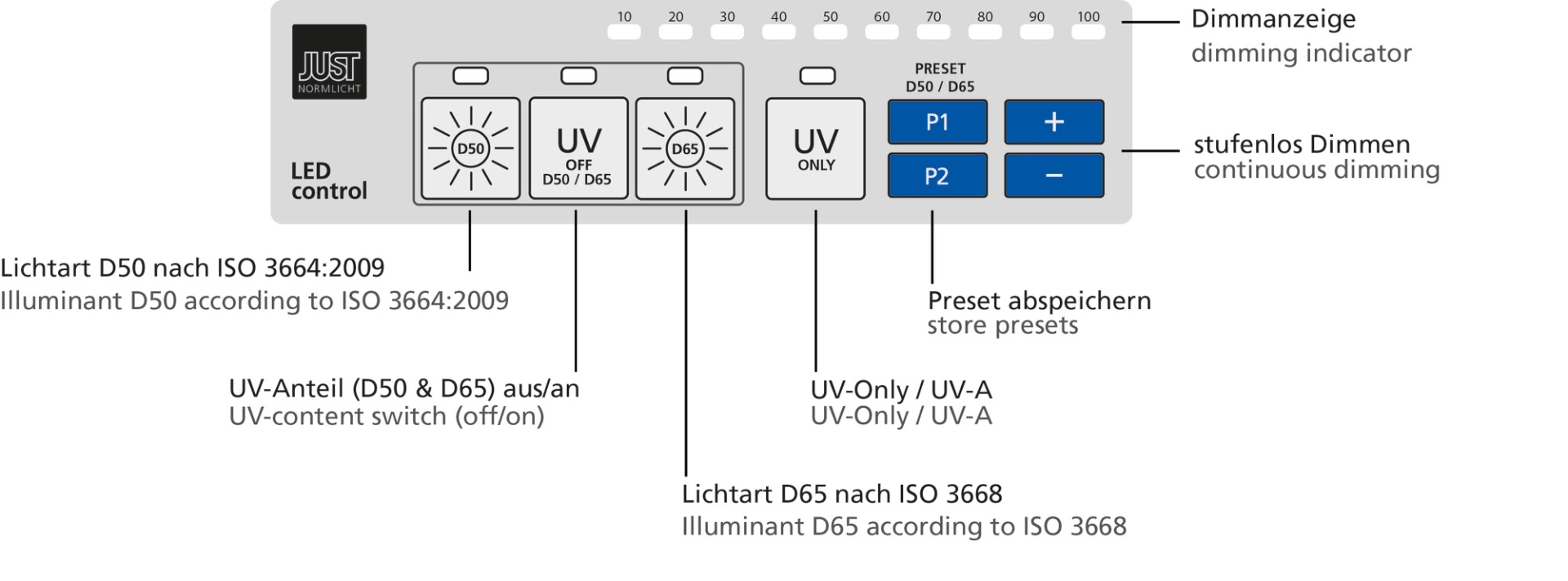

- LED-CONTROL provides easy and intuitive operation
- Supports simultaneous control of multiple luminaires in Main and Extension configurations
- No preheating required after turning on
- Expected LED operating life exceeding 50,000 hours depending on illuminant setting
- Stable light output throughout the entire lifespan
- Annual relamping is not required
- Extremely homogeneous illumination using Fresnel-type prismatic lens technology
- Glare-free and reflection-reduced illumination for accurate evaluation
- Includes wire suspension system for ceiling installation

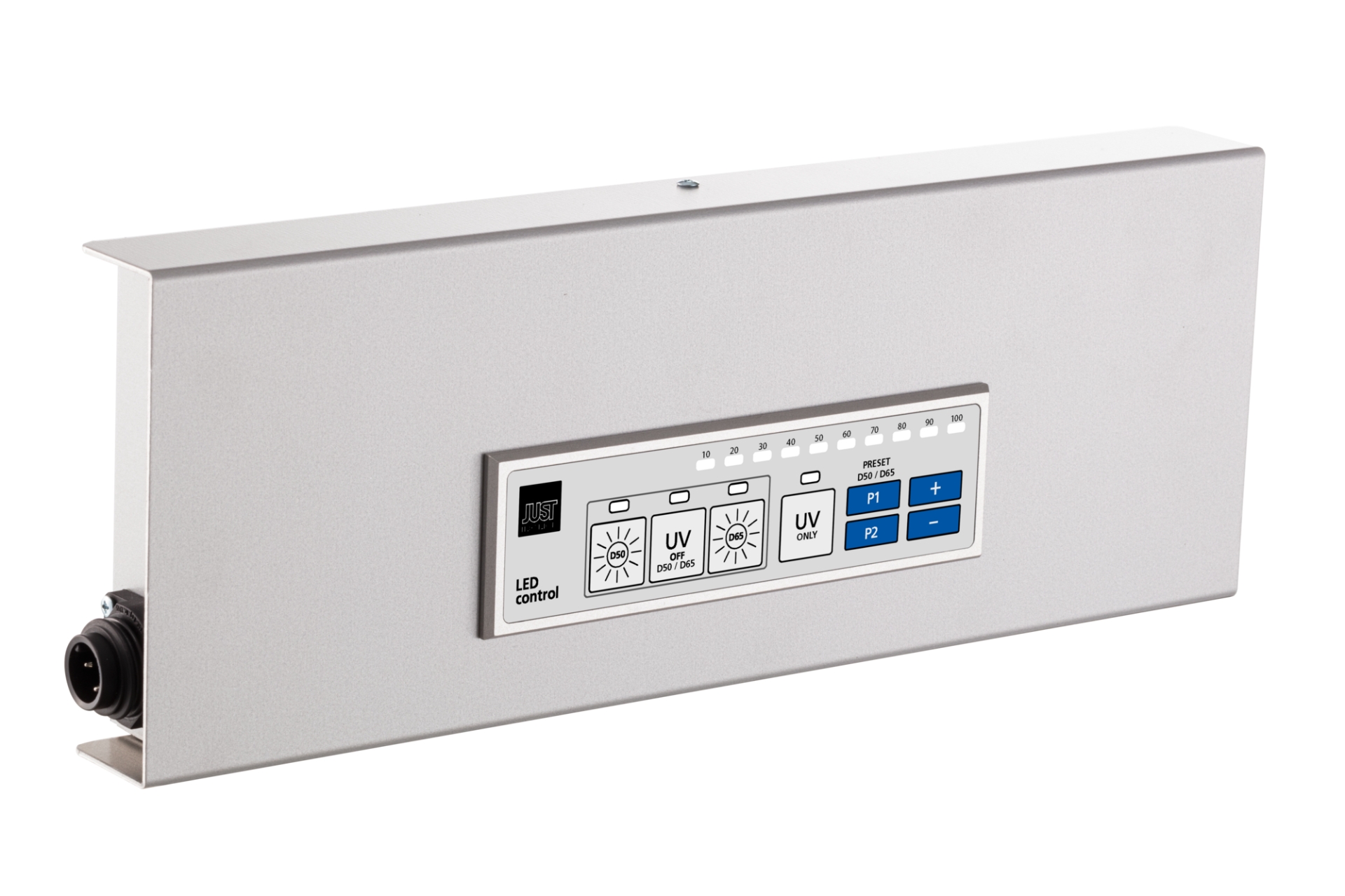

- Optional external LED Remote Control available
Advanced LED Color Matching Technology
The DLS moduLight 2-1700 combines multiple colored LED sources to generate a highly balanced and complete light spectrum that exceeds the minimum requirements of ISO 3664:2009 and ISO 3668. This advanced LED technology delivers reliable spectral performance without the maintenance requirements associated with traditional fluorescent lamps.
The integrated Fresnel-type prismatic lens system creates extremely homogeneous illumination across the entire viewing area while minimizing glare and reflections. This allows professionals to evaluate large-format samples with greater accuracy and consistency.
Illuminant Characteristics
The JUST Normlicht DLS moduLight 2-1700 features controlled asymmetrical illumination designed for viewing from one fixed position. This ensures repeatable viewing conditions while reducing unwanted reflections during color evaluation.
- Noon daylight simulation, LED 5000K CIE D50
- Average daylight from the northern sky simulation, LED 6500K CIE D65
- UV-ONLY UV-A illumination for optical brightener detection
- UV content can be switched off for assessment according to older ISO 3664 standards
Applications
- 2D evaluation of flat viewing samples including paper, fabrics, coatings, and printed materials
- Large-format print and packaging evaluation
- Commercial printing and prepress workflows
- Textile and fabric inspection
- Industrial coatings and surface evaluation
- Color-critical product development
- Detection of metamerism through multiple illuminants
- Evaluation of particularly large and flat viewing samples
Technical Data
| Category | Specification |
|---|
| Model | DLS moduLight 2-1700 LED Color Matching Luminaire |
| LED Configuration | Two-module LED-based color proofing and matching luminaire |
| Illuminants | CIE D50 (5000K), CIE D65 (6500K), UV-ONLY (UV-A) |
| Illumination Area | 160 x 80 cm (63 x 31.5 inches) |
| Outside Dimensions | 174 x 11.5 x 51.5 cm (68.5 x 4.5 x 20.25 inches) |
| Installation | Ceiling suspension with included wire mounting system |
| Product Weight | 25 kg (55 lbs) |
| Shipping Weight | 51 kg (112 lbs) |
| Illuminance | 2000 lux according to ISO standard |
| Color Rendering Index | CRI Ra ≥95 |
| Metamerism Index Visible Range | ≤0.8 (MIvis) |
| Metamerism Index UV Range | ≤0.6 (MIuv) |
| Chromaticity Error | ≤0.002 |
| Chromaticity Coordinates | D50: x=0.3478 / y=0.3595, D65: x=0.3138 / y=0.3309 |
| UV-ONLY Dominant Wavelength | 365 nm |
| UV-ONLY Radiant Power | 16 W |
| Risk Assessment | DIN EN 62471. D50+UV/D65+UV: RG0. UV-ONLY: RG1 |
| Maximum Electrical Power | 288 W |
| Operating Voltage | 120 V |
| Frequency | 60 Hz |
| Maximum Continuous Current | 1.0 A / 2.1 A |
| Typical Electrical Power | D50 (100%) 140 W, D65 (100%) 168 W |
| Expected LED Lifetime | Approximately 50,000 hours (D50), 30,000 hours (D65) |
| Housing | Anodized aluminum |
| Lens System | Special prismatic lens, UV-transmissive |
| Protection Class | IP52 |
| Ambient Temperature | 0°C to 40°C (32°F to 104°F) |
Why Choose the JUST Normlicht DLS moduLight 2-1700 LED?
The JUST Normlicht DLS moduLight 2-1700 is designed for professionals who require reliable, standardized illumination across larger color evaluation areas. Its two-module LED design provides an expanded 160 x 80 cm viewing area, making it ideal for evaluating large-format printed materials, textiles, coatings, packaging, and other color-critical samples.
By combining JUST’s patented multi-colored LED technology with precise D50, D65, and UV-A illumination options, the moduLight 2-1700 allows users to evaluate color under multiple standardized viewing conditions while identifying metamerism and optical brighteners. The result is improved color communication and greater confidence throughout production workflows.
The energy-efficient LED system eliminates the ongoing maintenance associated with fluorescent lighting. With no lamp replacements, no warm-up time, and stable illumination performance over thousands of operating hours, the DLS moduLight 2-1700 provides a dependable long-term solution for professional color matching environments.
Whether used in commercial printing, packaging, textiles, or industrial color control, the JUST Normlicht DLS moduLight 2-1700 delivers consistent, glare-free, ISO-compliant illumination for accurate color evaluation of large-format samples.
