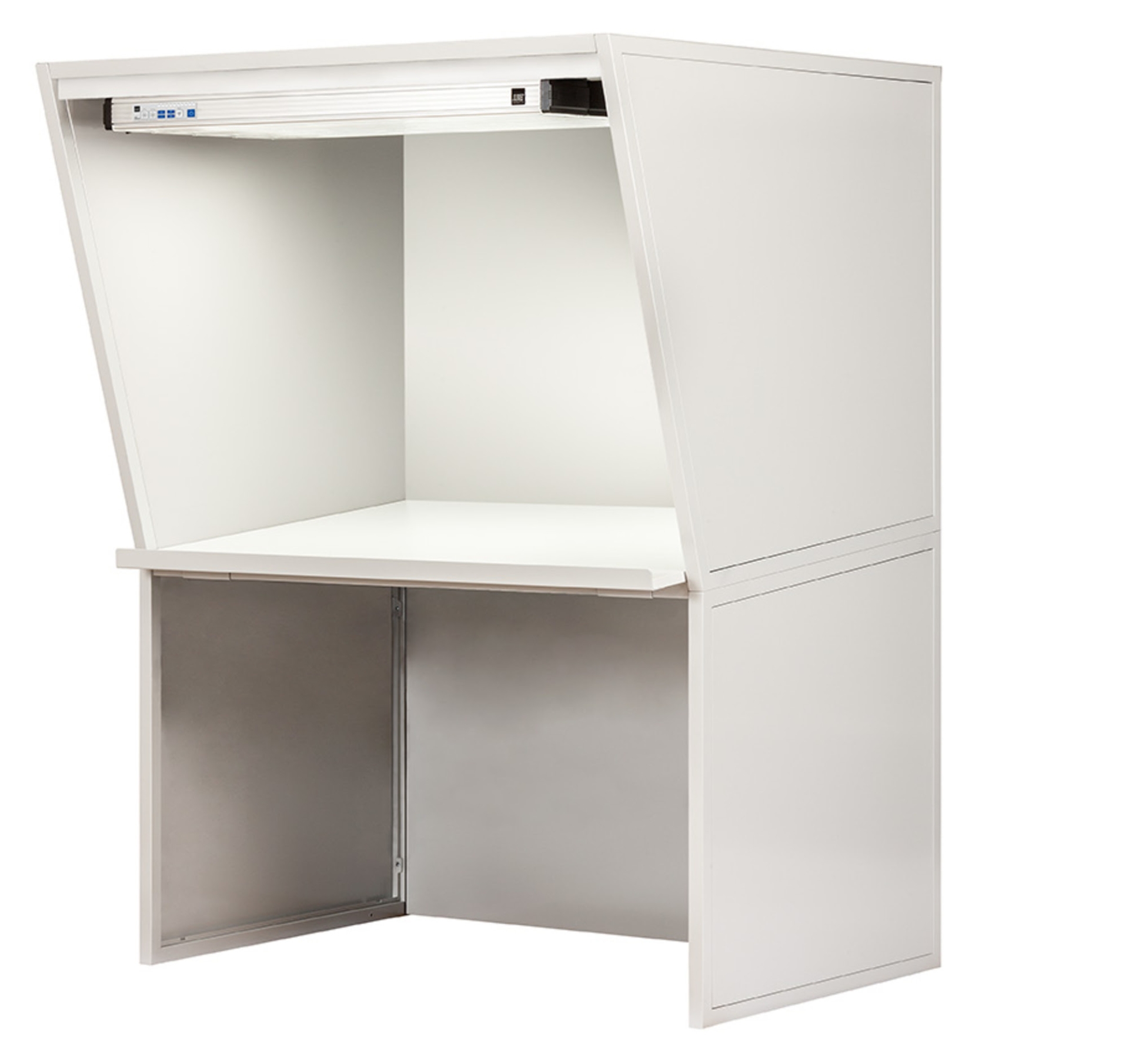

JUST Normlicht DLS proofStation 30 Large Format LED Color Viewing Station (D65/D50/UV-A) 66.5625" x 90.5625" x 58.25"
Large Format LED Color Viewing Station for Pressrooms and Color-Critical Workflows
Note: This Product is 120V/60Hz. It's also available in 240V.
The JUST Normlicht DLS proofStation 30 Large Format LED provides a professional solution for standardized color evaluation of wide-format prints in demanding production environments. Designed for pressrooms, proofing departments, and large-format print workflows, the proofStation delivers consistent D50 and D65 illumination conditions that exceed the requirements of ISO 3664:2009.
Featuring JUST’s patented LED illumination technology, the DLS proofStation 30 provides a spacious viewing environment with a usable area of 63 x 47 inches, making it ideal for evaluating 6B format prints and oversized color-critical materials. The large-format design can be configured with optional accessories including cabinets, racks, and monitor rails for soft proofing workflows.
Unlike traditional fluorescent viewing systems, the DLS proofStation 30 requires no annual relamping, no warm-up time, and no operating hours meter. Its advanced LED technology provides stable illumination throughout the entire lifespan with an expected operating life exceeding 50,000 hours.
Key Features
- Large format LED color viewing station designed for pressrooms and critical color evaluation
- Ideal for wide-format prints and 6B format color checking
- Fogra certified LED luminaire to ISO 3664:2009
- Patented JUST LED illumination technology (US Patent No. 8,592,748 B2)

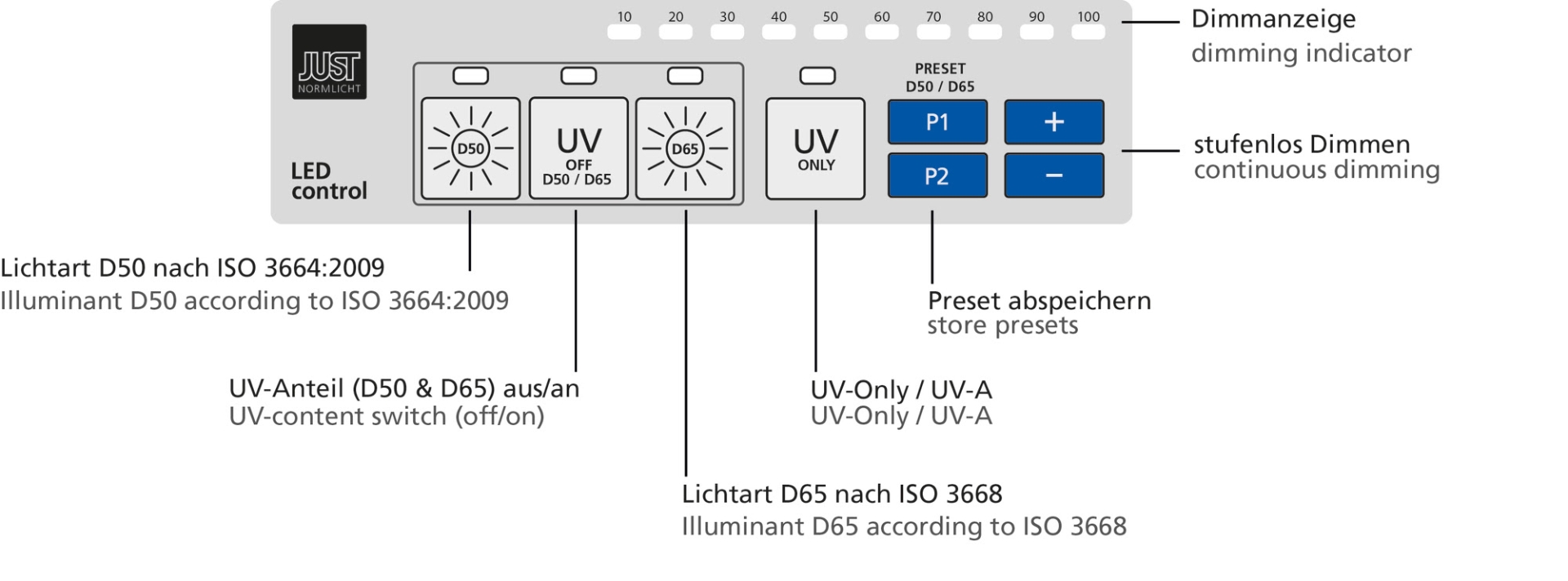

- D50 and D65 illuminants according to ISO 3664 and ISO 3668
- Switchable UV content for compatibility with current and previous ISO standards
- UV-ONLY UV-A illumination for detecting optical brighteners and fluorescent materials
- Continuous dimming without color shifts
- USB interface for connection to PC
- No preheating time required after powering on
- LED lifespan exceeding 50,000 hours
- Annual lamp replacement is not required
- Stable illumination output throughout LED lifespan
- Fresnel-type prismatic lens provides extremely homogeneous, glare-free, and reflection-free illumination
- Side walls shield viewing area from external light sources
- Neutral gray side and rear walls designed to Munsell N7 standard
- 2000 lux illuminance according to ISO standards
- Excellent color rendering with CRI (Ra) ≥95
Advanced LED Viewing Technology
JUST’s patented multi-colored LED technology produces a more complete and harmonious light spectrum than conventional fluorescent lamps. The combination of multiple LED wavelengths provides exceptional spectral quality, low metamerism, and consistent illumination performance throughout the entire operating life of the system.
The Fresnel-type prismatic lens creates highly uniform, reflection-free illumination across the large viewing surface, allowing professionals to accurately evaluate wide-format prints, proofs, paper, textiles, coatings, packaging, and other color-sensitive materials.
Designed for Large Format Color Workflows
The DLS proofStation 30 Large Format combines precision LED illumination with a flexible modular design to create an efficient color evaluation environment for professional production facilities. Optional accessories allow users to customize the viewing station with storage cabinets, racks, or monitor rails for integrated soft proofing applications.
Applications
- Large-format print evaluation and color quality control
- Pressroom and production environments
- 6B format wide-format print inspection
- Commercial printing and prepress workflows
- Packaging and label color evaluation
- Photography and fine art reproduction
- Graphic design and creative studios
- Textile and fabric inspection
- Coating and material evaluation
- Detection of metamerism, fluorescence, and optical brighteners
- Soft proofing workflows with monitor brightness matching
Technical Data
| Category | Specification |
|---|
| Model | DLS proofStation 30 Large Format LED Color Viewing Station |
| Illuminants | D50, D65, UV-A, UV-ONLY |
| Illuminant Characteristics | Asymmetrical light design for fixed viewing position, D50 noon daylight (LED 5000K), D65 average daylight from northern sky (LED 6500K), UV-ONLY UV-A |
| Illumination Area | 55 x 39 inches |
| Usable Area | 63 x 47 inches |
| External Dimensions | 66 9/16 x 90 9/16 x 58 1/4 inches |
| Illuminance | 2000 lux according to ISO standards |
| Color Rendering | CRI (Ra) ≥95 |
| Chromaticity Coordinates | D50: x = 0.3478 / y = 0.3595, D65: x = 0.3138 / y = 0.3309 |
| Chromaticity Error | ≤0.002 |
| Metamerism Index Visible Range | ≤0.8 (MIvis) |
| Metamerism Index UV Range | ≤0.6 (MIuv) |
| LED Technology | Patented JUST multi-colored LED illumination technology |
| Certification | Fogra certified LED luminaire to ISO 3664:2009 |
| LED Lifetime | More than 50,000 hours |
| Dimming | Continuous dimming without color shifts |
| USB Connection | USB interface for PC connection |
| Soft Proofing | Device brightness can be adapted to monitor brightness for soft proofing workflows |
| Viewing Design | Side walls and rear walls designed in neutral gray Munsell N7 to minimize external light influence |
| Lens System | Fresnel-type prismatic lens with glare-free and reflection-free illumination |
Professional Large Format Color Evaluation
The JUST Normlicht DLS proofStation 30 Large Format provides a complete solution for professionals requiring accurate color evaluation of oversized prints and materials. Designed for 6B format applications, the large viewing area allows operators to comfortably inspect wide-format prints while maintaining standardized lighting conditions.
With switchable D50, D65, and UV-A illumination, users can evaluate color accuracy, fluorescence, optical brighteners, and metamerism across a wide variety of substrates. The adjustable LED brightness also supports soft proofing workflows by allowing the viewing environment to be matched to monitor luminance.
Why Choose the JUST Normlicht DLS proofStation 30 Large Format LED?
The JUST Normlicht DLS proofStation 30 Large Format LED delivers the precision, flexibility, and reliability required for demanding large-format color workflows. Its advanced LED illumination system provides stable, standardized lighting without the maintenance and replacement costs associated with fluorescent technology.
With Fogra certified LED technology, ISO-compliant D50 and D65 illumination, UV-A analysis capabilities, and an expansive viewing area, the DLS proofStation 30 Large Format helps printers, designers, and production teams make confident color decisions throughout the entire workflow.
Built for pressrooms, wide-format production environments, and color-critical applications, the JUST Normlicht DLS proofStation 30 Large Format provides dependable performance for accurate evaluation of today's largest printed materials.
