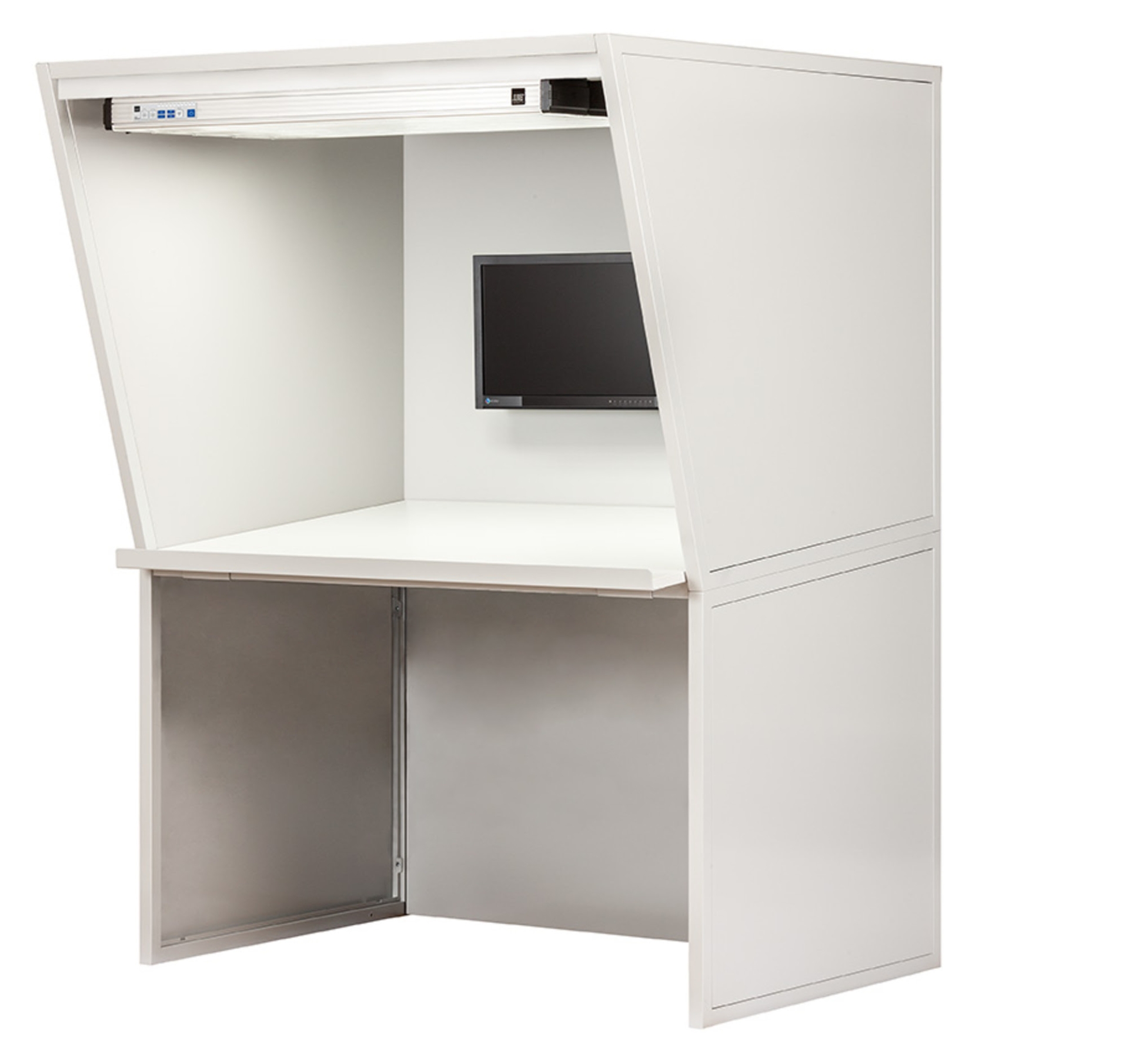

The JUST Normlicht DLS proofStation 30 Large Format SP LED combines advanced LED color viewing technology with a dedicated soft proofing environment designed for professionals working with oversized prints and critical color workflows. Featuring JUST’s patented multi-LED illumination system, the proofStation provides standardized D50 and D65 viewing conditions while eliminating the maintenance and replacement costs associated with traditional fluorescent systems.
Designed for large-format color evaluation and soft proofing applications, the DLS proofStation 30 Large Format SP includes an integrated monitor mount that allows users to compare a calibrated display directly against printed samples under controlled lighting conditions. The adjustable LED brightness can be matched to monitor luminance, creating a consistent digital-to-print comparison environment for accurate color decisions.
With a large 63 x 47 inch usable viewing area, the DLS proofStation 30 Large Format SP is ideal for evaluating wide-format prints, packaging, and other oversized materials. D50, D65, UV-A, and UV-ONLY illumination provide the flexibility needed to analyze color accuracy, optical brighteners, fluorescence, and metamerism across a wide range of applications.
Unlike conventional fluorescent color viewing systems, the DLS proofStation 30 Large Format SP requires no annual relamping, no warm-up time, and delivers stable light output throughout the entire LED lifespan. Its advanced LED technology provides reliable performance with an expected operating life exceeding 50,000 hours.
Key Features
- Professional large-format LED color viewing station designed for soft proofing and color-critical workflows
- Integrated monitor mount for digital-to-print comparison (screen not included)
- Ideal for 6B format wide-format print evaluation
- Fogra certified LED technology to ISO 3664:2009
- Patented JUST LED illumination technology (US Patent No. 8,592,748 B2)

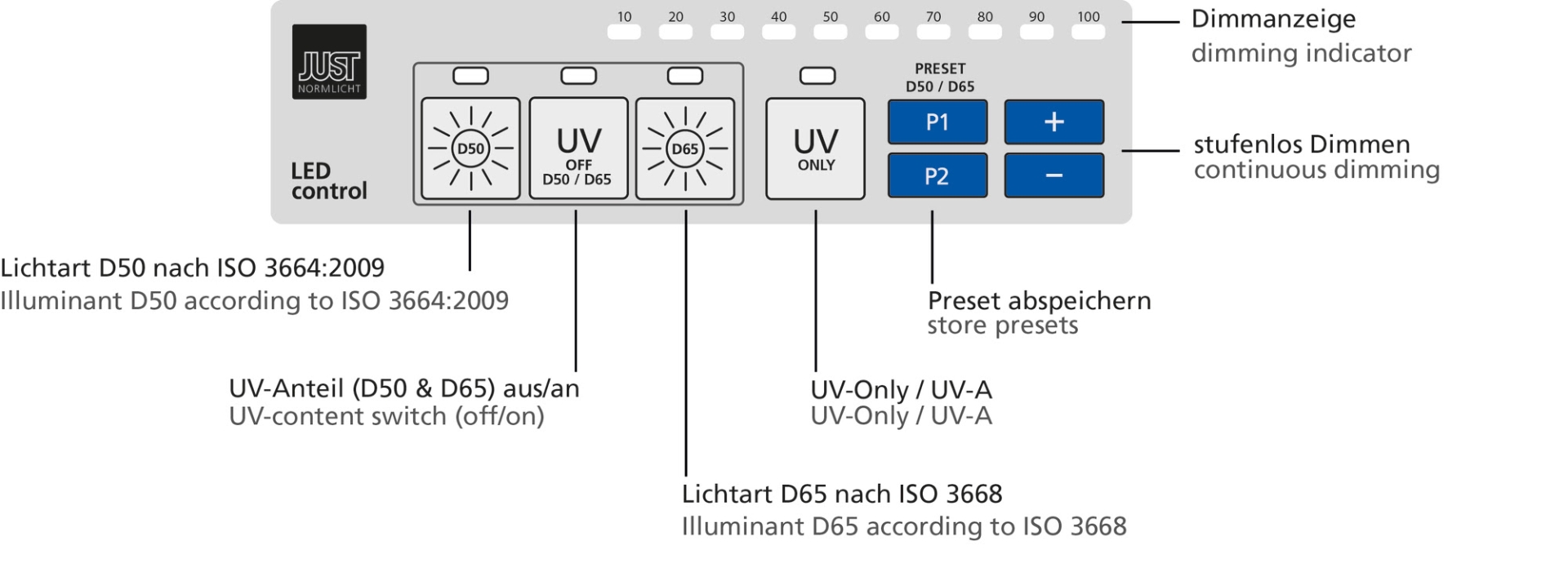

- D50 and D65 illuminants according to ISO 3664 and ISO 3668
- Switchable UV content for compatibility with current and previous ISO standards
- UV-ONLY UV-A illumination for detecting optical brighteners and fluorescent materials
- Continuous dimming with brightness adjustment for soft proofing applications
- USB interface for connection to PC
- No color shifts while dimming
- No preheating time required after powering on
- LED lifespan exceeding 50,000 hours
- Annual lamp replacement is not required
- Stable illumination output throughout LED lifespan
- Fresnel-type prismatic lens provides extremely homogeneous, glare-free, and reflection-free illumination
- 2000 lux illuminance according to ISO standards
- Excellent color rendering with CRI (Ra) ≥95
Advanced LED Viewing Technology
JUST’s patented multi-colored LED technology produces a more complete and harmonious light spectrum than conventional fluorescent lamps. The combination of multiple LED wavelengths provides exceptional spectral quality, low metamerism, and consistent illumination performance throughout the entire operating life of the system.
The Fresnel-type prismatic lens creates highly uniform, reflection-free illumination across the viewing surface, allowing professionals to accurately evaluate oversized proofs, paper, packaging, fabrics, coatings, and other color-sensitive materials.
Designed for Professional Soft Proofing Workflows
The DLS proofStation 30 Large Format SP combines precision LED illumination with a dedicated soft proofing workstation design. The included monitor mount allows users to position a calibrated display within the standardized viewing environment, helping create reliable comparisons between digital files and physical prints.
By adapting the viewing brightness to match monitor luminance, professionals can achieve a consistent soft proofing workflow while maintaining accurate color evaluation under standardized lighting conditions.
Applications
- Soft proofing and monitor-to-print comparison
- Large-format print evaluation and quality control
- Pressroom and production environments
- Commercial printing and prepress workflows
- Packaging and label color evaluation
- Photography and fine art reproduction
- Graphic design and creative studios
- Textile and fabric inspection
- Coating and material evaluation
- Detection of metamerism and optical brighteners
