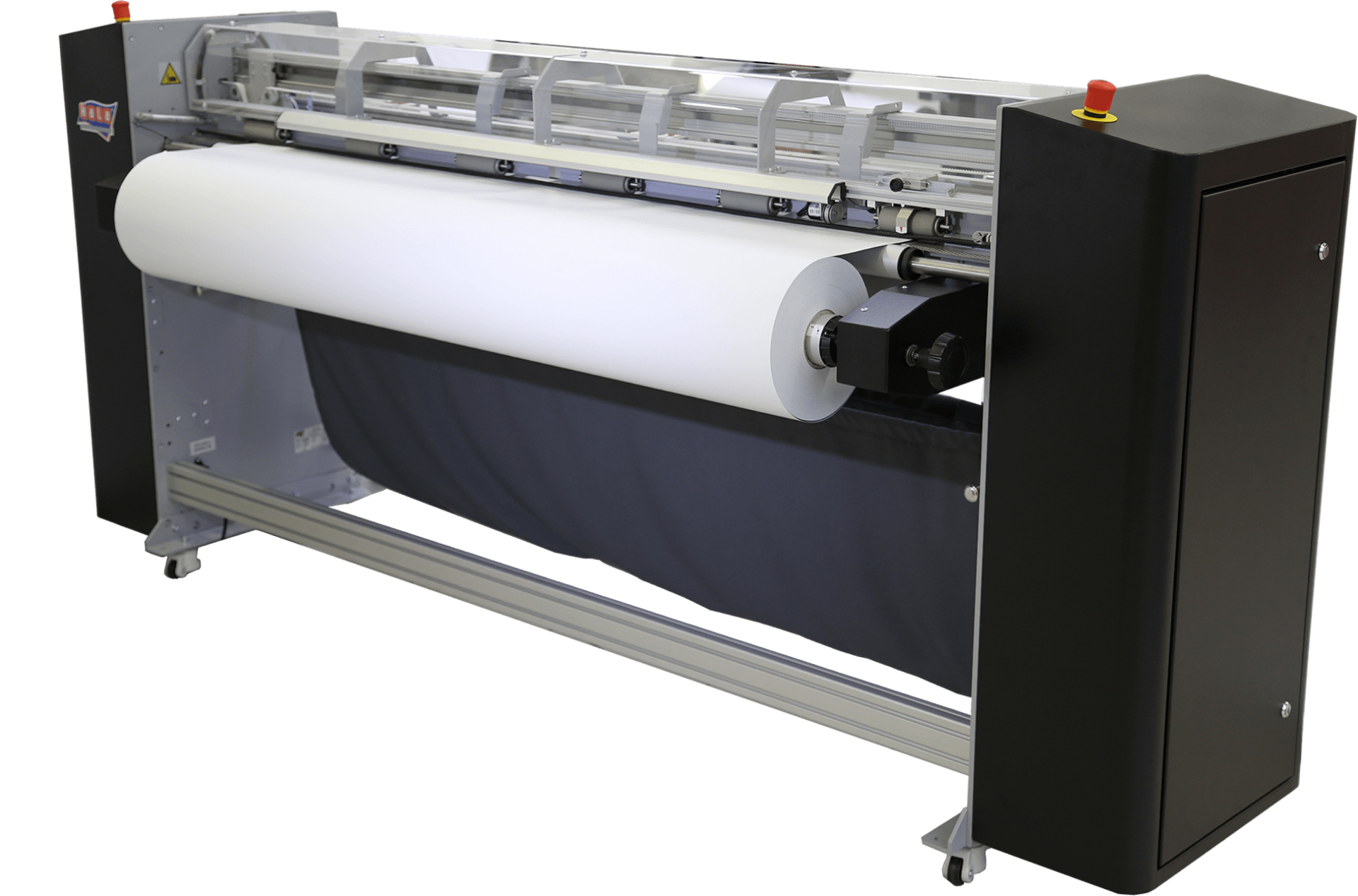

KalaXY II 1650 (65") Trimmer: Includes (1) Left "Y" Blade, (1) Right "Y" Blade, (1) Single OR Double "Y" Blade

Entry level Suitable for cuts with a lower degree of accuracy in the Y axis.

Are cutting prints the most labor intensive and time-consuming task in your workshop? This outstanding Kala automatic XY trimmer is the answer. By quickly and easily cutting rolls into rectangular sheets it removes the bottleneck in your production line.

KalaXY II 1650 (65") is the base model in the KalaXY Trimmer product line and is a great solution for basic X and Y cutting of all printed or unprinted flexible media up to 65" wide.

The device is is a simplified version of the KalaXY PLUS and KalaXY PRO Trimmer and does not feature thefollowing functions:

♦ Automatic Y correction: Does not feature automatic telescope roll correction (featured on KalaXY PRO)
♦ Electrical adjustment of the Y blade holder (featured on KalaXY PLUS and PRO)

Perfectly suited for cutting unprinted material to size and for jobs that do not require increased precision. Tolerance X cut +/- 1 mm (1/32”), Y cut +/- 0,5 mm (1/64”)

Designed to process most flexible media up to 1 mm (40ml) in thickness inclding paper, vinyl, wallpaper, canvas, laminates, PVC, polycarbonate, and much more.

KALA XY TRIMMER

Features:

• Eliminates production bottlenecks associated with cutting flexible media into square or rectangular formats
• Different work modes: automatic cutting, manual cutting, and set length cutting
• Easy to use touch screen and operating system
• Low maintenance cost
• X Blade angle adjustment
• Robust chasiss

Automatic X-cutting with mark detection by optical sensor

These benchmarks can be generated manually or automatically from most commercially available Rips, especially Caldera and SAI. Cutting to a defined length without marking is also possible.

Reception table

Table on rail, with two folding ends according to the length of the prints. Total maximum length 2,40 m. Magnetic stops for easy stacking of documents.

Output guide rollers

To improve cutting accuracy Y.

Y blade holder

Additional blade holder. Single or double blade Horizontal outlet plate included.

KalaXY Trimmer With Dual Take-Up System
