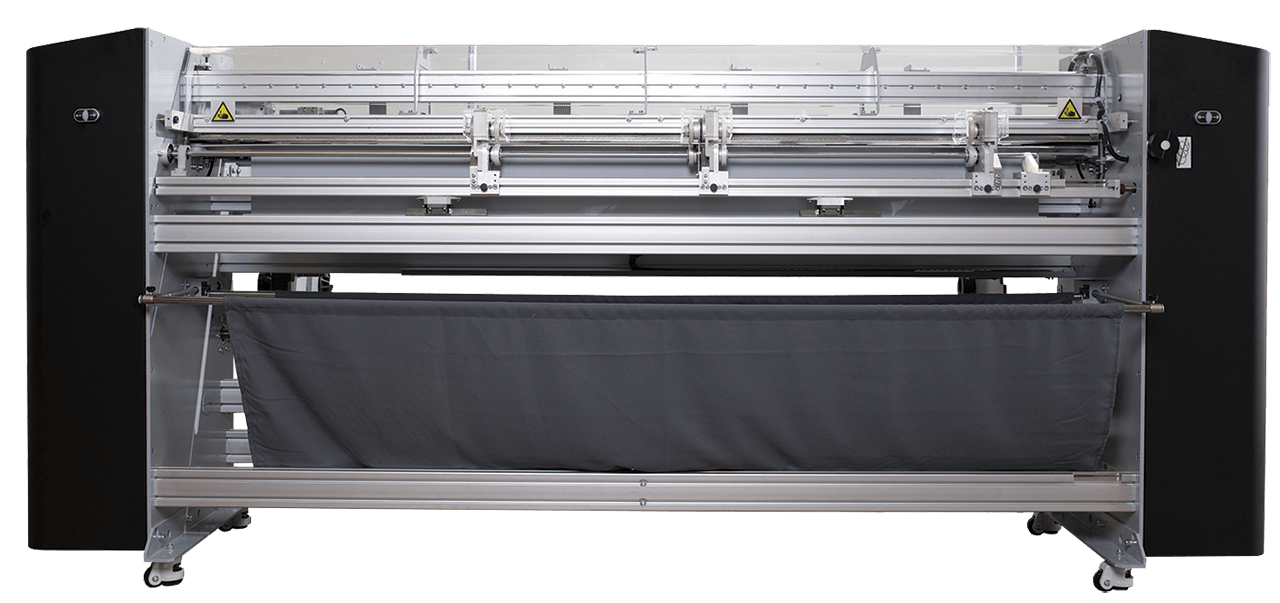

KalaXY Plus 1650 (65") Trimmer: Includes (1) Left "Y" Blade, (1) Right "Y" Blade, (1) Single OR Double "Y" Blade

For optimum precision

Are cutting prints the most labor intensive and time-consuming task in your workshop? This outstanding Kala automatic XY trimmer is the answer. By quickly and easily cutting rolls into rectangular sheets it removes the bottleneck in your production line.

KalaXY Plus 1650 (65") is the midrange model in the product line designed for trimming all flexible media up to 65" in width and 40 mil thick. It offers several features and specifications to enhance functionality and efficiency when cutting material into square or rectangular formats, whether small or large.

Tolerance X cut +/- 1 mm (1/32”), Y cut +/- 0,5 mm (1/64”)
Electrical adjustment of the Y-blade holder.

KALA XY TRIMMER

KalaXY PLUS Features:

• Electrical Y Blade Adjustment: The model includes electrical adjustment of the entire set of Y cutting blades. This feature allows for on-the-fly correction of errors caused by misalignment in the rolls of printed material.
• Production Efficiency: The KalaXY PLUS eliminates bottlenecks associated with cutting flexible media into square or rectangular formats. It streamlines the production process while improving efficiency and accuracy.
• X-Blade Angle Adjustment: All KalaXY Trimmers feature X-blade angle adjustment, providing the perfect X cut every time.
• Vertical Slitting Blades: The machine has single or double vertical slitting blades.
• Work Modes: All KalaXY trimmers offer different work modes, including automatic cutting, manual cutting, and set-length cutting.
• Easy-to-Use Touch Screen and Operating System: The machine features a user-friendly touch screen and operating system, making it easy for your entire staff to control and operate.
• Low maintenance cost
• Robust chassis: Sturdy and durable chassis to ensure stability during operation.

Manual blade positioning Y

Electrical adjustment of the position of all the Y blades, controllable by the operator during the work.

Automatic X-cutting with mark detection by optical sensor.

These benchmarks can be generated manually or automatically from most commercially available Rips, especially Caldera and SAI. Cutting to a defined length without marking is also possible.

Reception table

Table on rail, with two folding ends according to the length of the prints. Total maximum length 2,40 m. Magnetic stops for easy stacking of documents.

Output guide rollers

To improve cutting accuracy Y.

Y blade holder

Additional blade holder. Single or double blade Horizontal outlet plate included.

KalaXY Trimmer With Dual Take-Up System
