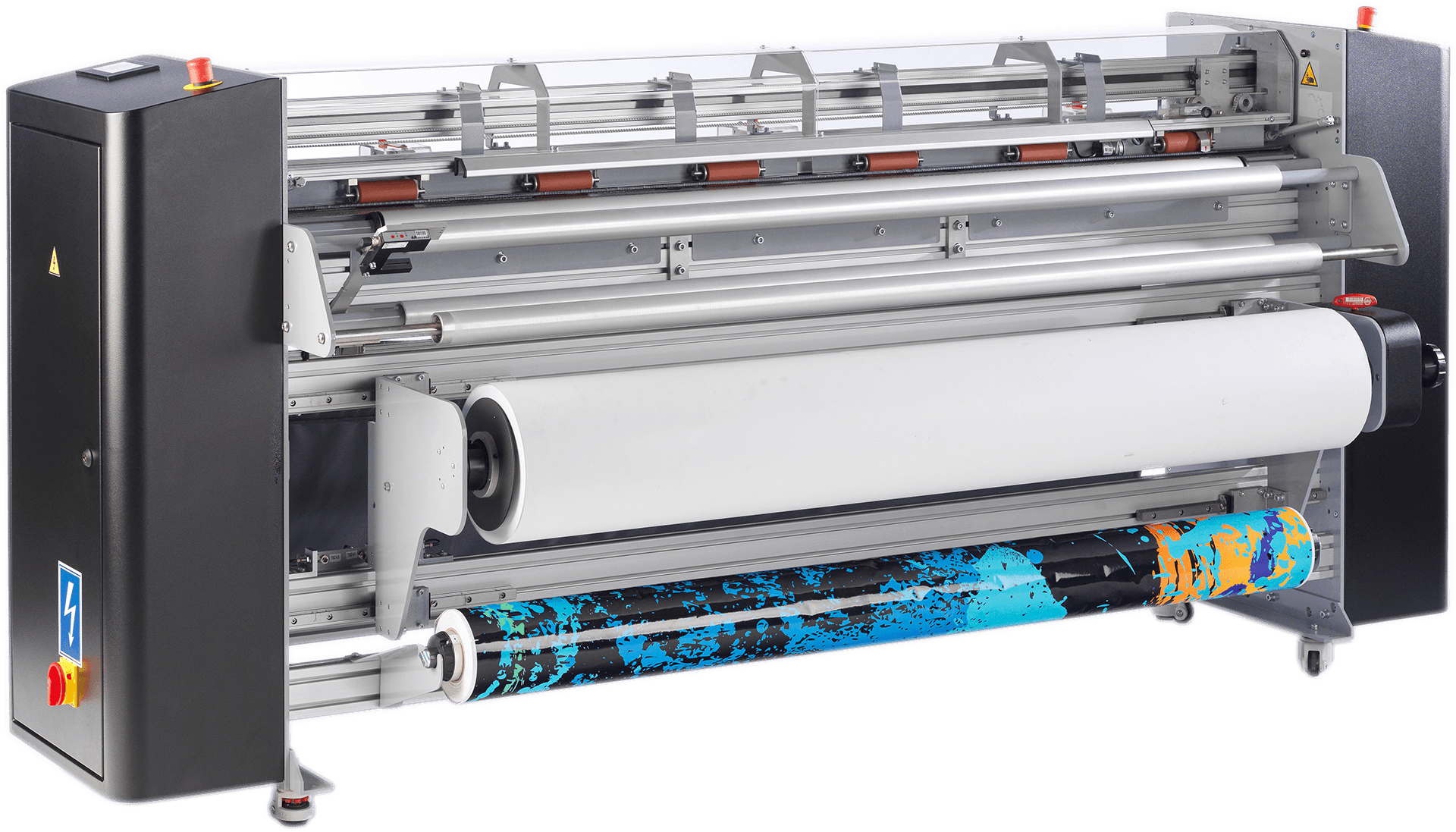

KalaXY PRO 1650 (65") Trimmer: Includes One (1) Left "Y" Blade, One (1) Right "Y" Blade, and One (1) Single OR Double "Y" Blade

Precision cuts for an investment in your printers.

Are cutting prints the most labor intensive and time-consuming task in your workshop? This outstanding Kala automatic XY trimmer is the answer. By quickly and easily cutting rolls into rectangular sheets it removes the bottleneck in your production line.

KalaXY Pro 1650 (65") is the top of the line model in the product line and is the perfect solution for cutting all flexible media up to 65" in width and 40 mil thick. Print shops rely on KalaXY Automatic XY Cutters to process a wide range of films including photo paper, polycarbonate, DTF transfers, vinyl, self-adhesive vinyl, PVC, duratrans, film, magnetic, canvas, laminated or encapsulated prints, and most other films.

The main fucntion that sets the KalaXY PRO apart from the other models is the automatic telescope roll correction. This feature automatically adjusts the roll of material to compensate for any print misalingment or material telescoping during the printing process. For applications like wallpaper or butt-joint installations the PRO model is recommended.

Tolerance X cut +/- 1 mm (1/32”), Y cut +/- 0,5 mm (1/64”)
Automatic correction of the print roll edge position before horizontal cuts (X) and vertical (Y).

KALA XY TRIMMER

KalaXY PRO Features:

• Automatic Telescope Roll Correction: The KalaXY PRO automatically adjusts the entire roll of material to compensate for any print misalignemnt or material telescoping that may have occured in the printing process.
• Electrical Y Blade Adjustment: The model includes electrical adjustment of the entire set of Y cutting blades. This feature allows for on-the-fly correction of errors caused by misalignment in the rolls of printed material.
• Production Efficiency: The KalaXY PRO eliminates bottlenecks associated with cutting flexible media into square or rectangular formats. It streamlines the production process while improving efficiency and accuracy.
• X-Blade Angle Adjustment: All KalaXY Trimmers feature X-blade angle adjustment, providing the perfect X cut every time.
• Vertical Slitting Blades: The machine has single or double vertical slitting blades.
• Work Modes: All KalaXY trimmers offer different work modes, including automatic cutting, manual cutting, and set-length cutting.
• Easy-to-Use Touch Screen and Operating System: The machine features a user-friendly touch screen and operating system, making it easy for your entire staff to control and operate.
• Low maintenance cost
• Robust chassis: Sturdy and durable chassis to ensure stability during operation.

Automatic correction of the media position

To ensure a precise and regular cut Photo KALA XY_Edge detector 5.

Manual blade positioning Y

Electrical adjustment of the position of all the Y blades, controllable by the operator during the work.

Automatic X-cutting with mark detection by optical sensor.

These benchmarks can be generated manually or automatically from most commercially available Rips, especially Caldera and SAI. Cutting to a defined length without marking is also possible.

Reception table

Table on rail, with two folding ends according to the length of the prints. Total maximum length 2,40 m. Magnetic stops for easy stacking of documents.

Output guide rollers

To improve cutting accuracy Y.

Y blade holder

Additional blade holder. Single or double blade Horizontal outlet plate included.

KalaXY Trimmer with Dual Take-Up System
