Practix OK-12 CP Cut Part & Roll to Roll Sublimation System - 12" Drum, 104" Wide

Practix OK-12 CP Cut Part & Roll to Roll Sublimation System - 12" Drum, 104" Wide - The Practix OK-12 CP Digital Rotary Heat Transfer Machine offers 66", 88", 104", and 128" belt widths, enabling full-width fabric printing with its 12" oil-filled heated drum. Designed for both roll materials and cut pieces, this machine combines robust engineering and advanced automation for unmatched heat transfer performance.


This product is customizable. Please call us at 1-800-771-9665.

We will get you the most accurate quote to meet your specific needs.

Manufacturer: Practix
Availability: Call for Availability
SKU: OK-12-CP-104
Call for pricing

Practix OK-12 CP Cut Part & Roll to Roll Sublimation System - 12" Drum, 104" Wide

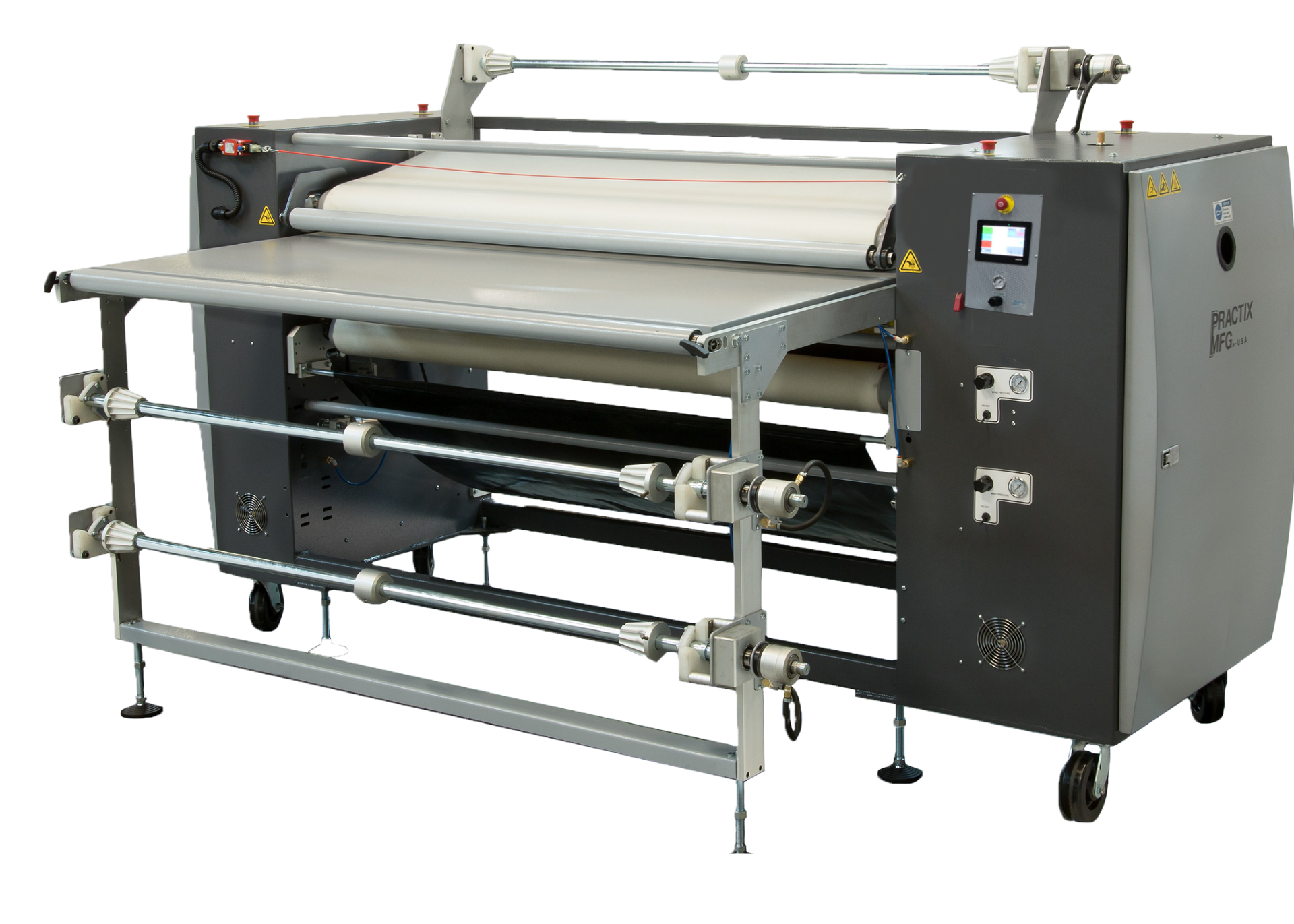

Digital Rotary Heat Transfer Machine



Practix Manufacturing’s OK-12CP is one of the most advanced heat transfer machines currently available. With a heavy-duty unitized frame, 12” diameter drum, and varying belt widths that allow for printing on fabrics of all sizes, the OK-12CP is a heat transfer press that is unlike anything else in its class. This model can be used for transferring on continuous or roll materials or an optional table is a feature for cut part or piece goods. Practix rotary product lines include high quality innovative engineered design using a heavy duty frame, automation, and best quality electrical and pneumatic components like all Practix heat transfer equipment, including sublimation machines, lamination machinery and embossing equipment.



The Practix OK-12CP commercial heat press features the following:



  • 66”, 88”, 104″, and 128″ belt widths allow for printing on full-width fabrics
  • 12” (300mm) diameter drum makes it the fastest small drum rotary transfer printing machine on the market
  • A heavy-duty unitized frame with solid steel construction
  • Oil-filled drum enables colors to print consistently from side-to-side, as well as job-to-job
  • Standard triple unwind/rewind system for transfer printing from roll-to-roll
  • Pneumatic brakes and clutches for precise tensioning of fabric and papers
  • Ability to print banners, exhibit backdrops, sportswear, and casino felts with ease


Perfect for printing on a wide variety of materials, the OK-12CP can produce beautiful, flawless designs for t-shirts, sportswear, display banners, awnings, floor mats, mouse pads, upholstery, and more. As an added bonus, Practix is one of the only heat transfer equipment manufacturers to offer fully customizable options for modified, colors, shapes, sizes, and more.



BELT WIDTH66″ (1.67m)88″ (2.25m)104″ (2.64m)128″ (3.25m)
POWER REQD18.6 KW24.8 KW31 KW (32 KW 3PH)37.2 KW (40 KW 3PH)
MAX TEMP450F450F450F450F
APPROX WEIGHT3200LB (1451 Kg)3400LB (1542 Kg)3600LB (1632 Kg)3900LB (1775 Kg)
AIR SUPPLY100 PSI 0.8 CFM100 PSI 0.8 CFM100 PSI 0.8 CFM100 PSI 0.8 CFM
DIMENSIONS58″ W 102″ L 63″ H58″ W 124″ L 63″ H58″ W 140″ L 63″ H58″ W 164″ L 63″ H



All Practix machines, including the OK-12CP dye sublimation printer, come backed by a one-year mechanical and six-month electrical warranty. Plus, Practix machines are fully customizable to meet the size and color requirements of your facility.

Practix OK-12 CP Cut Part & Roll to Roll Sublimation System - 12" Drum, 104" Wide



Digital Rotary Heat Transfer Machine



Practix Manufacturing’s OK-12CP is one of the most advanced heat transfer machines currently available. With a heavy-duty unitized frame, 12” diameter drum, and varying belt widths that allow for printing on fabrics of all sizes, the OK-12CP is a heat transfer press that is unlike anything else in its class. This model can be used for transferring on continuous or roll materials or an optional table is a feature for cut part or piece goods. Practix rotary product lines include high quality innovative engineered design using a heavy duty frame, automation, and best quality electrical and pneumatic components like all Practix heat transfer equipment, including sublimation machines, lamination machinery and embossing equipment.



The Practix OK-12CP commercial heat press features the following:



  • 66”, 88”, 104″, and 128″ belt widths allow for printing on full-width fabrics
  • 12” (300mm) diameter drum makes it the fastest small drum rotary transfer printing machine on the market
  • A heavy-duty unitized frame with solid steel construction
  • Oil-filled drum enables colors to print consistently from side-to-side, as well as job-to-job
  • Standard triple unwind/rewind system for transfer printing from roll-to-roll
  • Pneumatic brakes and clutches for precise tensioning of fabric and papers
  • Ability to print banners, exhibit backdrops, sportswear, and casino felts with ease


Perfect for printing on a wide variety of materials, the OK-12CP can produce beautiful, flawless designs for t-shirts, sportswear, display banners, awnings, floor mats, mouse pads, upholstery, and more. As an added bonus, Practix is one of the only heat transfer equipment manufacturers to offer fully customizable options for modified, colors, shapes, sizes, and more.



BELT WIDTH66″ (1.67m)88″ (2.25m)104″ (2.64m)128″ (3.25m)
POWER REQD18.6 KW24.8 KW31 KW (32 KW 3PH)37.2 KW (40 KW 3PH)
MAX TEMP450F450F450F450F
APPROX WEIGHT3200LB (1451 Kg)3400LB (1542 Kg)3600LB (1632 Kg)3900LB (1775 Kg)
AIR SUPPLY100 PSI 0.8 CFM100 PSI 0.8 CFM100 PSI 0.8 CFM100 PSI 0.8 CFM
DIMENSIONS58″ W 102″ L 63″ H58″ W 124″ L 63″ H58″ W 140″ L 63″ H58″ W 164″ L 63″ H



All Practix machines, including the OK-12CP dye sublimation printer, come backed by a one-year mechanical and six-month electrical warranty. Plus, Practix machines are fully customizable to meet the size and color requirements of your facility.
