Practix OK-16 CP Cut Part & Roll to Roll Sublimation System - 16" Drum, 128" Wide - The Practix OK-16 CP Rotary Heat Transfer Machine, available in 66", 88", 104", and 128" belt widths, features a 16" oil-filled drum for high-speeds up to 230 ft an hour. Featuring a 7" touch screen, programmable settings, and advanced safety systems, this press ensures precise and efficient heat transfer, ideal for high-volume production.
This product is customizable. Please call us at 1-800-771-9665.
We will get you the most accurate quote to meet your specific needs.
Availability: Call for Availability

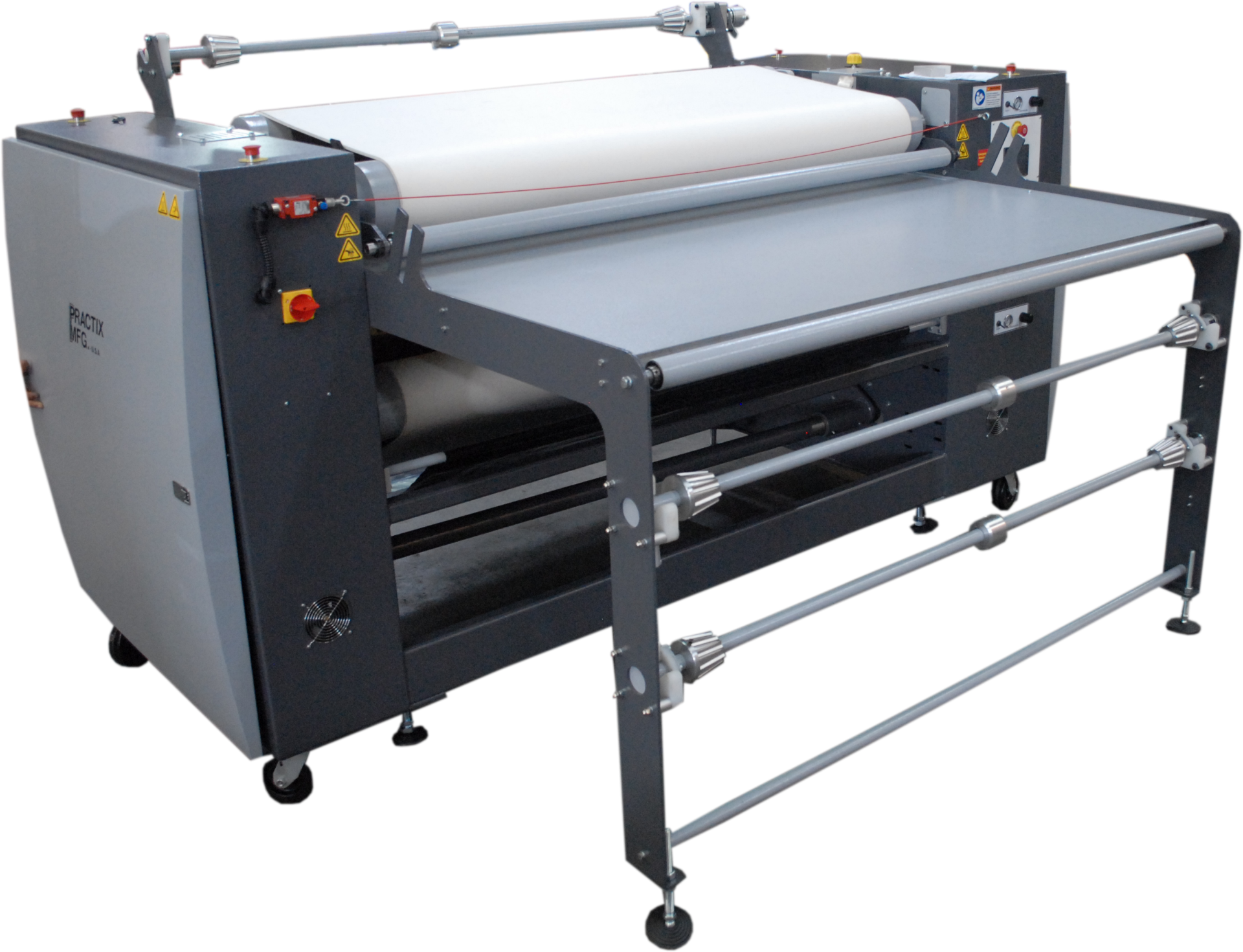

Practix OK-16 CP Cut Part & Roll to Roll Sublimation System - 16" Drum, 128" Wide
Continuous Dye Sublimation Three in One Dye Sublimation Production
The Practix OK-16CP Rotary Press is available in 66”, 88”, 104” and 128” wide printable widths. The 16’ diameter oil filled steel encased drum offers 240 degrees of heat contact required for the sublimation heat transfer process. This drum size equates to an increased production speed of 230 feet per hour when running at a 40 second dwell time. Dwell time can easily be increased or decreased to accommodate the substrates heat transfer needs. Changing of the setting is easily performed on the large touch screen pad, and all settings can be saved for future production runs.
This model offers three different options for continuous dye sublimation production:
- Sheet of pre-printed transfer paper with pre-cut textile pieces
- Roll of pre-printed transfer paper with pre-cut textile pieces
- Roll of pre-printed transfer paper with bolt of textile
Design and built by Practix Mfg. using a heavy-duty frame, automation, and best quality electrical and pneumatic components like all Practix heat transfer equipment, including sublimation machines, lamination machinery and embossing equipment.
Key Features:
- 16” Oil filled encased diameter drum for high speed production
- 7″ touch screen interface of all mechanical functions provides intuitive user control and savable settings ensures consistent production
- Program for save settings
- Digital speed controller
- Automatic belt tracking system
- Three unwind and three rewind with pneumatic tension
- Pressure operated paper tension controls
- Three-inch chucks for all unwind and rewind shafts
- Reversing capability
- Safety systems (emergency stops and hand protection at entry)
- Automatic cool down and start up controls
Upgrade Options:
- Mesh Output Conveyor
- Paper Separating
- Powered Unwind Stretchy
- Fabrics Surface Rewind
- 70″ Extended Production Table
- Personalized/Custom Paint
All Practix machines, including the OK-16CP dye sublimation printer, come backed by a one-year mechanical and electrical warranty.
